Product Information

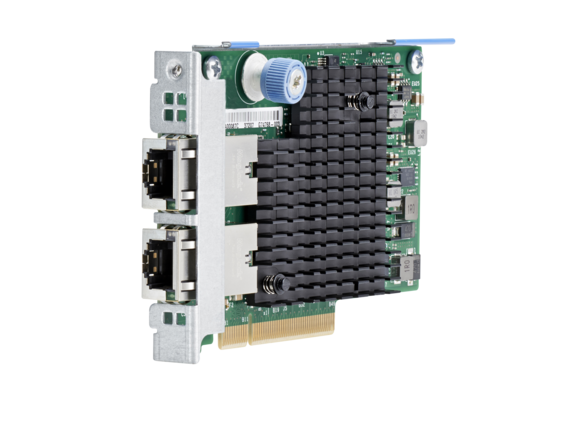

The HPE 700699-B21 is the Ethernet 10Gb 2-port 561FLR-T, a low cost, low power 10GBASE-T FlexibleLOM adapter for rack, tower and scalable servers in the HPE ProLiant Gen8 and Gen9 lines, plus Apollo systems. It uses a PCIe 2.1 x8 interface and RJ-45 ports.
Key Features
- Intel X540 10GbE controller
- Works with CAT 6A or better twisted pair cable
- 40 Gb/s across the whole adapter, 20 Gb/s bi-directional on each port
- Intel VT-c virtualization (VMDq, SR-IOV) with VMware NetQueue and Microsoft VMQ support
- IEEE 1588 time stamping and 802.1AS time sync
- VLAN tagging, low latency interrupts, TCP/UDP checksum offload, MSI-X, NIC teaming, RSS, jumbo frames and PXE boot
- IPv6, Wake-on-LAN at 1Gb, and HPE Sea of Sensors 3D Technology support
Also Supported
Checksum and segmentation offload, OS specific configuration utilities, DPDK, HPE Sea of Sensors 3D, IPv6, Jumbo Frames, LED status indicators, SNMP management support, MSI-X, NIC teaming, VMware NetQueue and Microsoft VMQ virtualization support, PXE boot, RSS, TCP/UDP/IP checksum offloads, Precision Time Protocol (IEEE 1588 PTP)
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 700699-B21
Option Part Number: 700699-B21
Spare Part Number: 701525-001
General
Product Type: Network Adapter
Form Factor: Standard and low profile adapter compliant with the PCIe standard
Adapter Details
Bus Type: PCI Express 2.1 (Gen 2) x8
Network Processor: Intel X540 Controller
Data Rate: Two ports, each at 20 Gb/s bi-directional; 40 Gb/s aggregate bi-directional theoretical bandwidth.
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gb/sec
Remote Management: SNMP
Status Indicators: Port status, link activity
IEEE Standards: 802.3, 802.3x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb, 802.1ax
Features: Jumbo Frames Support, Teaming Support, PXE Support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Processor: 1 x X540 - Intel
Connections
Connector: RJ-45 (Two)
Ports: 10Gb Ethernet x 2, 2 x 10Gb Ethernet - RJ-45
Cabling: Ethernet 10GBase-T
Wiring: CAT6 UTP or better twisted-pair cabling
Cable Distance: Maximum distances for CAT6 cable are 30 meters (98 feet). Maximum distances for CAT6A (or better) are 100 meters (328 feet).
Software and Compatibility
Supported Operating Systems: SunSoft Solaris 10, Microsoft Windows Server 2008 Foundation, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter, Red Hat Enterprise Linux 6, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Citrix XenServer 6.0, Microsoft Windows Server 2012, SunSoft Solaris 11, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1
Size and Weight
Width: 9.50 inch
Height: 2.25 inch
Depth: 7.50 inch
Weight: 1.00 lbs
Certifications and Approvals
RoHS Compliance: 6 of 6
Safety Standards: UL Mark (USA and Canada), CE Mark, EN 60590
USA: FCC Part 15 Class A
Canada: ICES-003, Issue 4
Japan: VCCI V3 (2010.04) Class A
International: EN55022:2006 + A1:2007 Class A, EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008
Taiwan: BSMI, CNS13438 (2006) Class A
Australia/New Zealand (AS/NZS): EN55022:2006+A12007 Class A
Korea: KN22 Class A, KN24
Power and Environment
Operating Temp (Min): 32 °F (0° C)
Operating Temp (Max): 131 °F (55° C)
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen9, DL60 Gen9, DL80 Gen9, DL120 Gen9, DL160 Gen9, DL180 Gen9, DL360 Gen9, DL380 Gen9, DL560 Gen9, DL580 Gen9
- HPE ProLiant DL (Gen8) Series: DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance
- HPE ProLiant SL Series: SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s Gen8 Base 2U Right Half Width Tray, SL250s Gen8 Base 2U Right Tray Server, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray
- HPE Apollo Series: 2000 Gen9, 4200 Gen9, 4500 XL450 Gen9, 6000 XL230a Gen9, 6000 XL230b Gen9, 6000 XL250a Gen9
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
