Product Information

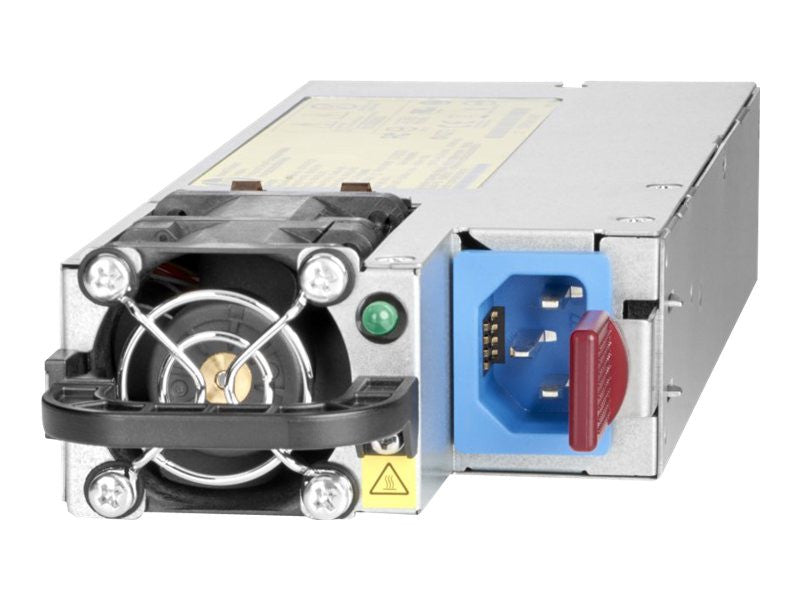

The HPE 704604-001 is a 1500 watt Common Slot Platinum hot swap power supply for HPE ProLiant Gen8 and Gen9 servers. It takes 200 to 240 volt AC input at 50-60Hz.
Key Features
- 1500W output, 200-240V AC input (180-264V range)
- 94% efficiency, 80 PLUS Platinum
- Hot swap, redundant design
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 704604-001
Option Part Number: 684532-B21
Spare Part Number: 704604-001
Model Number: PS-2152-1C-LF
Assembly Number: 684530-201
HPE GPN: 684529-001
General
Product Type: Power Supply - Hot-Plug / Redundant - Plug-in Module
Form Factor Spec: Common Slot
Size and Weight
Width: 1.50 inch
Depth: 7.50 inch
Height: 3.40 inch
Weight: 3.00 lbs
Power
Input Voltage: AC 200-240 V
Input Voltage Range: AC 180 - 264 V
Frequency: 50 - 60 Hz
Output Capacity: 1500 Watt / 1681 VA
Efficiency: 94%
80 PLUS Rating: 80 PLUS Platinum
Power and Environment
Compliance: FCC Class A certified, CSA, UL, TUV, C-Tick, BSMI, CCC, KCC, WEEE
Operating Temp (Min): 41 °F
Operating Temp (Max): 122 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE ProLiant DL Series: DL560 Gen9 (1500 Watt), DL560 Gen9 Base (1500 Watt), DL560 Gen9 Entry (1500 Watt), DL560 Gen9 Performance (1500 Watt)
- HPE ProLiant SL Series: SL210t Gen8 1U Node (1500 Watt), SL230s Gen8 1U Left Half Width Tray (1500 Watt), SL230s Gen8 1U Right Half Width Tray (1500 Watt), SL230s Gen8 Base 1U Left Tray Server (1500 Watt), SL230s Gen8 Base 1U Right Tray Server (1500 Watt), SL250s Gen8 2U Left Half Width Tray (1500 Watt), SL250s Gen8 2U PCIe Gen3 Left Tray (1500 Watt), SL250s Gen8 2U PCIe Gen3 Right Tray (1500 Watt), SL250s Gen8 2U Right Half Width Tray (1500 Watt), SL250s Gen8 Base 2U Left Half Width Tray (1500 Watt), SL250s Gen8 Base 2U Left Tray Server (1500 Watt), SL250s Gen8 Base 2U Right Half Width Tray (1500 Watt), SL250s Gen8 Base 2U Right Tray Server (1500 Watt), SL270s Gen8 1U Left Half Width Tray (1500 Watt), SL270s Gen8 1U Right Half Width Tray (1500 Watt), SL270s Gen8 Base 4U Left Half Width Tray (1500 Watt), SL270s Gen8 Base 4U Right Half Width Tray (1500 Watt), SL270s Gen8 SE 4U Left Tray (1500 Watt), SL270s Gen8 SE 4U Right Tray (1500 Watt)
Not sure this power supply fits your system? Send us your server or enclosure model and the DatorPro team will confirm compatibility before you order.
