Product Information

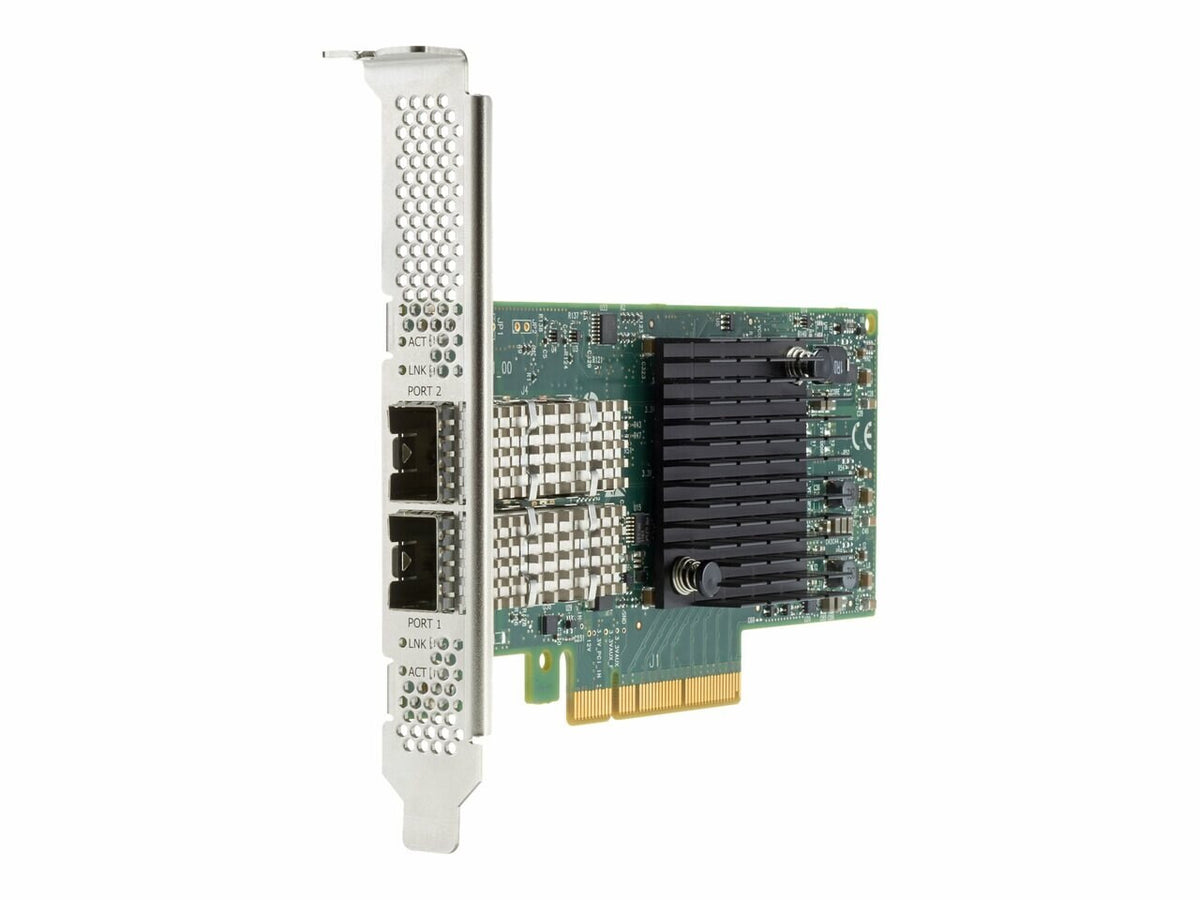

The HPE 706801-001 is a StoreFabric CN1100R dual port 10Gb SFP+ converged network adapter for HPE ProLiant Gen8, Gen9 and Gen10 servers. It combines Ethernet, iSCSI and Fibre Channel over 10GbE using FCoE and CEE.
Key Features
- Fewer adapters and cables, with lower power, cooling and running costs
- Keeps your existing Ethernet and Fibre Channel setup in place
- Tested by HPE with ProLiant servers plus top of rack and end of row switches
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 706801-001
Option Part Number: QW990A
Spare Part Number: 706801-001
General
Product Type: Network Adapter - 10Gbit Ethernet
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express 2.0 x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 10 Gigabit Ethernet
Transfer Rate: 10 Gbps
Network/Transport Protocol: iSCSI
Connections
Cabling: Fiber optic
Ports: 10Gb Ethernet x 2, 2 x 10GBASE-SR - SFP+
Slot: 1 x PCI Express 2.0 x8
Size and Weight
Height: 3.00 inch
Width: 8.00 inch
Depth: 10.00 inch
Weight: 1.00 lbs
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1as, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 802.1Qbh
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Apollo Series: 4510 Gen10
- HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL320e Gen8 v2, DL320e Gen8 v2 Base, DL320e Gen8 v2 Performance, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL380 Gen10, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 SMB Networking Choice, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL388 Gen10 Network Choice, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance
- HPE ProLiant ML Series: ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance, ML350p Gen8 Special Server
- HPE ProLiant XL Series: XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL190r Gen10
- HPE StoreEasy 3850 Gateway Storage
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
