Product Information

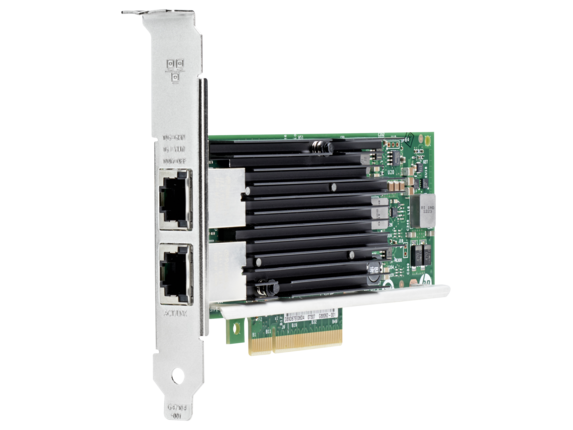

The HPE 716591-B21 is the Ethernet 10Gb 2-port 561T, a low cost, low power 10GBASE-T stand up adapter for HPE ProLiant servers, designed with Gen8 rack, tower and scalable servers in mind. It has two RJ-45 ports on a PCIe 2.1 x8 card.
Key Features
- Intel X540 10GbE controller
- Uses standard CAT6 or better UTP cabling
- 20Gbps full duplex on each port
- Intel VT-c virtualization (VMDq, SR-IOV) with VMware NetQueue and Microsoft VMQ support
- VLAN tagging, low latency interrupts, TCP/UDP checksum offload, MSI-X, NIC teaming, RSS, jumbo frames and PXE boot
- IPv6 support and HPE Sea of Sensors 3D Technology
- Jumbo frames, teaming, PXE, LSO, RSS and TCP Segmentation Offload (TSO)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 716591-B21
Option Part Number: 716591-B21
Spare Part Number: 717708-001, 717708-002
Assembly Number: 716589-001
General
Product Type: Network Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express 2.1 x8
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Features: Jumbo Frames support, teaming support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Remote Management: SNMP
Status Indicators: Port status, link/activity
Processor: 1 x x540 - Intel
Connections
Ports: 10Gb Ethernet x 2, 2 x 10Gb Ethernet - RJ-45
Software and Compatibility
Supported Operating Systems: SunSoft Solaris 10, Microsoft Windows Server 2008 Foundation, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter, Red Hat Enterprise Linux 6, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Citrix XenServer 6.0, Microsoft Windows Server 2012, SunSoft Solaris 11, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1
Size and Weight
Width: 9.50 inch
Height: 2.25 inch
Depth: 7.50 inch
Weight: 1.00 lbs
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, UL, BSMI, BSMI CNS 13438 Class A, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, WEEE, FCC Part 15 A, VCCI V-3 Class A ITE
Operating Humidity: 5 - 95% (non-condensing)
Operating Temp (Max): 55 °C
Operating Temp (Min): 0 °C
Compatible Systems
- HPE Apollo pc40, sx40
- HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380p Gen8 Base, DL380p Gen8 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL80 Gen9 Entry
- HPE ProLiant ML Series: ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML30 Gen9, ML30 Gen9 Base, ML30 Gen9 Performance, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Special Server
- HPE ProLiant SL Series: SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s Gen8 Base 2U Right Half Width Tray, SL250s Gen8 Base 2U Right Tray Server, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray, SL4540 Gen8, SL4540 Gen8 Tray 2x Node Server, SL4545 G7
- HPE ProLiant XL Series: XL170r Gen9, XL190r Gen9
- HPE SimpliVity 380 Gen9 Node
- HPE StoreEasy 3850 Gateway Single Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
