Product Information

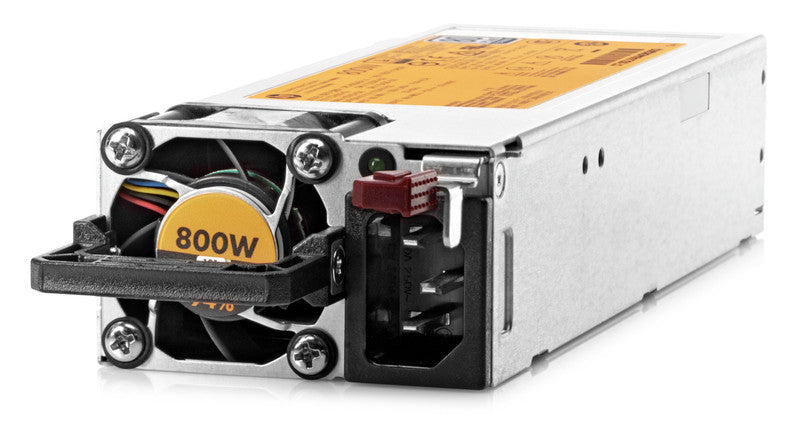

The HPE 723600-101 is an 800 watt Flex Slot redundant hot plug power supply for HPE ProLiant Gen9 servers. It is 80 PLUS Platinum certified with 94% efficiency and runs on 100 to 240 volt AC.
Key Features
- 800W output, 100-240V AC input
- 94% efficiency, 80 PLUS Platinum
- Flex Slot form factor, 25% smaller than HPE Common Slot supplies, leaving more room for other server options
- Tool-less, hot plug design for fast swaps
- The Flex Slot family reaches up to 96% efficiency, which lowers power draw and waste
- One Flex Slot spare covers ProLiant Gen10, ProLiant 300 series Gen9 and Apollo 2000/4000 servers, keeping spares simple
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 723600-101
Option Part Number: 720479-B21
Spare Part Number: 754381-001
Model Number: DPS-800AB-11A
Assembly Number: 723600-101
HPE GPN: 723599-001
General
Product Type: Power Supply - Hot-Plug / Redundant - Plug-in Module
Form Factor Spec: Flex Slot
Cooling: Active Fan
Size and Weight
Height: 4.04 cm (1.59 inch)
Width: 6.80 cm (2.68 inch)
Depth: 22.53 cm (8.87 inch)
Weight: 910 gm (2.00 lbs)
Shipping Depth: 14.61 cm
Shipping Height: 19.05 cm
Shipping Width: 37.47 cm
Shipping Weight: 1.59 kg
Power
Output Capacity: 800 Watt / 915 VA
Input Voltage: AC 100-240 V
Frequency: 50 - 60 Hz
Efficiency: 94%+
80 PLUS Rating: 80 PLUS Platinum
Power and Environment
Compliance: UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, CISPR
Operating Humidity: 5% - 95% (non-condensing)
Operating Temp (Max): 55 °C
Operating Temp (Min): 5 °C
Compatible Systems
- HPE Apollo 4510 Gen9 (800 Watt), 4520 Gen9 (800 Watt), 4530 (800 Watt)
- HPE ProLiant DL Series: DL360 Gen9 (800 Watt), DL360 Gen9 Base (800 Watt), DL360 Gen9 CMS (800 Watt), DL360 Gen9 Entry (800 Watt), DL360 Gen9 Performance (800 Watt), DL380 Gen9 (800 Watt), DL380 Gen9 Base (800 Watt), DL380 Gen9 Entry (800 Watt), DL380 Gen9 Performance (800 Watt)
- HPE ProLiant ML Series: ML350 Gen9 (800 Watt), ML350 Gen9 Base (800 Watt), ML350 Gen9 Entry (800 Watt), ML350 Gen9 Performance (800 Watt)
- HPE SimpliVity 380 Gen9 Node (800 Watt) Contact with us if you have any question or to know the compatibility of this Product with your current server or storage array
Not sure this power supply fits your system? Send us your server or enclosure model and the DatorPro team will confirm compatibility before you order.
