Product Information

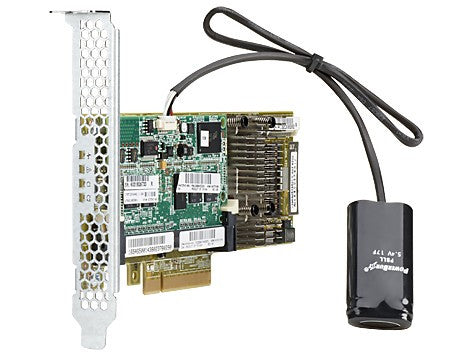

The HPE 729635-001 is a Smart Array P430 RAID controller with 2GB of flash backed write cache (FBWC) for HPE ProLiant Gen8 servers. It is a single port internal PCIe card for SAS and SATA drives, with transfer rates up to 12Gb/s.
Key Features
- RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 729635-001
Option Part Number: 698529-B21
Spare Part Number: 729635-001
General
Product Type: Storage Controller (RAID) - Plug-in Card - Low Profile
Controller
Host Bus: PCIe 3.0 x8
Drive Interface: SATA 6Gb/s / SAS 6Gb/s
Transfer Rate: 6 Gbit/s
Cache Size: 2 GB
Supported Devices: Hard Drive, Disk Array (RAID), Solid State Drive
Channels: 8
Max Drives: 27
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 Raid 1 ADM, Raid 10 ADM
Connections
Ports: 2 x SATA 6Gb/s / SAS 6Gb/s (internal)
Slot: 1 x PCI Express 3.0 x8
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, Suse Linux Enterprise Server 11 For X86, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5 X64 Edition, Red Hat Enterprise Linux 6 X64 Edition, Suse Linux Enterprise Server 11 X64 Edition, Vmware Esxi 5.0 Update 2, Vmware Esxi 5.1 Update 1, Vmware Vsphere 5.5
Compatible Systems
- HPE ProLiant Generation8 Servers
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
