Product Information

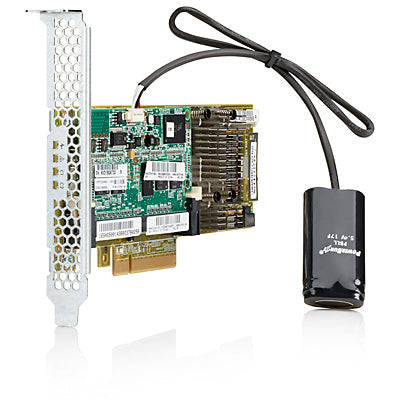

The HPE 729636-001 is a Smart Array P431 RAID controller with 4GB of flash backed write cache (FBWC) for HPE ProLiant Gen8 servers. It is a dual port external PCIe card for SAS and SATA drives, with transfer rates up to 12Gb/s.
Key Features
- RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 729636-001
Option Part Number: 698532-B21
Spare Part Number: 729636-001
General
Product Type: Storage Controller (RAID) - Plug-in Card - Low Profile
Controller
Host Bus: PCIe 3.0 x8
Drive Interface: SATA 6Gb/s / SAS 12Gb/s
Transfer Rate: 12 Gbit/s
Cache Size: 4 GB
Supported Devices: Disk array (RAID)
Channels: 8
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Connections
Ports: 2 x SATA 6Gb/s / SAS 6Gb/s (internal)
Slot: 1 x PCI Express 3.0 x8
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, Microsoft Windows Server 2012, VMware ESXi 5.0 update 2, VMware ESXi 5.1 update 1, VMware vSphere 5.5
Size and Weight
Width: 2.30 inch
Depth: 9.50 inch
Height: 7.50 inch
Weight: 15.87 oz
Power and Environment
Compliance: WEEE, REACH
Compatible Systems
- HPE ProLiant ML Series: ML350e Gen8 v2, ML350e Gen8 v2 Base
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
