Product Information

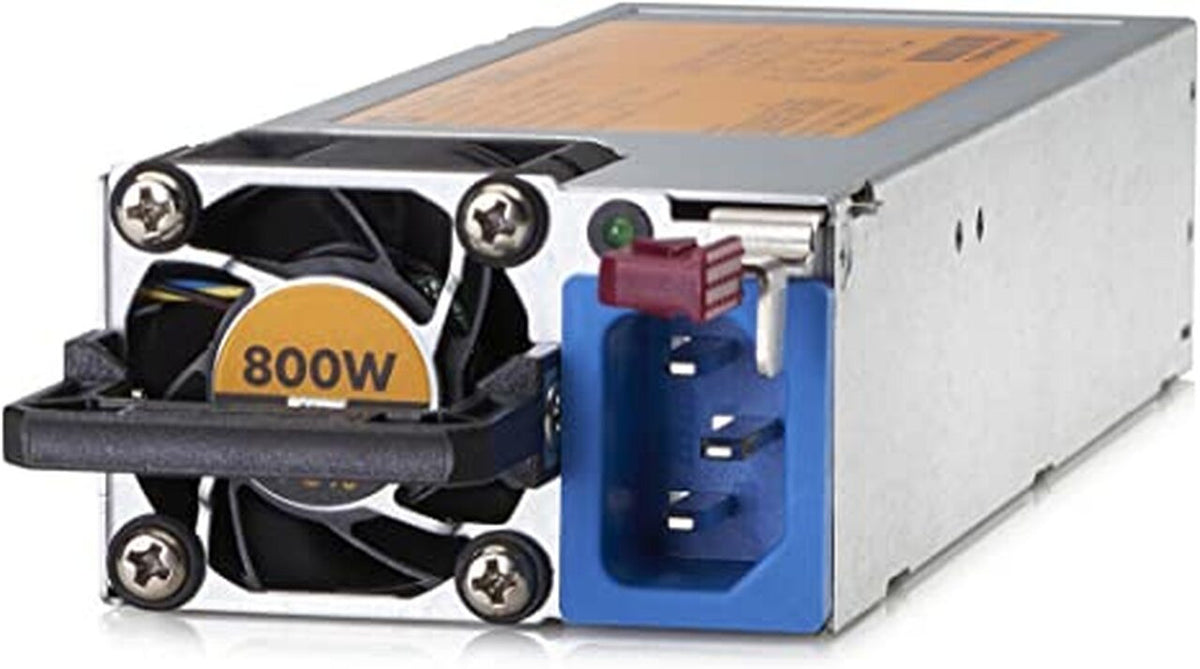

The HPE 735039-201 is an 800 watt universal Flex Slot hot plug power supply for HPE ProLiant Gen9 servers. It takes 200 to 277 volt AC input.
Key Features
- 800W output, 200-277V AC input
- Flex Slot form factor, 25% smaller than HPE Common Slot supplies, leaving more room for other server options
- Tool-less, hot plug design for fast swaps
- The Flex Slot family reaches up to 96% efficiency, which lowers power draw and waste
- One Flex Slot spare covers ProLiant Gen10, ProLiant 300 series Gen9 and Apollo 2000/4000 servers, keeping spares simple
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 735039-201
Option Part Number: 720484-B21
Spare Part Number: 754379-001
Model Number: HSTNS-PL45
Assembly Number: 735039-201
HPE GPN: 735037-001
General
Product Type: Power Supply - Hot-Plug / Redundant - Plug-in Module
Form Factor Spec: Flex Slot
Size and Weight
Height: 1.60 inch
Width: 2.70 inch
Depth: 8.90 inch
Weight: 32.10 oz
Power
Input Voltage: AC 200-277 V
Frequency: 50 - 60 Hz
Output Capacity: 800 Watt
Power Factor: 0.99
Power and Environment
Compliance: UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, CISPR
Operating Temp (Min): 41 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Apollo 4510 Gen9 (800 Watt), 4520 Gen9 (800 Watt), 4530 (800 Watt)
- HPE ProLiant DL Series: DL360 Gen9 (800 Watt), DL360 Gen9 Base (800 Watt), DL360 Gen9 CMS (800 Watt), DL360 Gen9 Entry (800 Watt), DL360 Gen9 Performance (800 Watt), DL380 Gen9 (800 Watt), DL380 Gen9 Base (800 Watt), DL380 Gen9 Entry (800 Watt), DL380 Gen9 High Performance (800 Watt), DL380 Gen9 Performance (800 Watt), DL380z Gen9 (800 Watt)
- HPE ProLiant ML Series: ML350 Gen9 (800 Watt), ML350 Gen9 Base (800 Watt), ML350 Gen9 Entry (800 Watt), ML350 Gen9 Performance (800 Watt)
- HPE SimpliVity 380 Gen9 Node (800 Watt)
Not sure this power supply fits your system? Send us your server or enclosure model and the DatorPro team will confirm compatibility before you order.
