Product Information

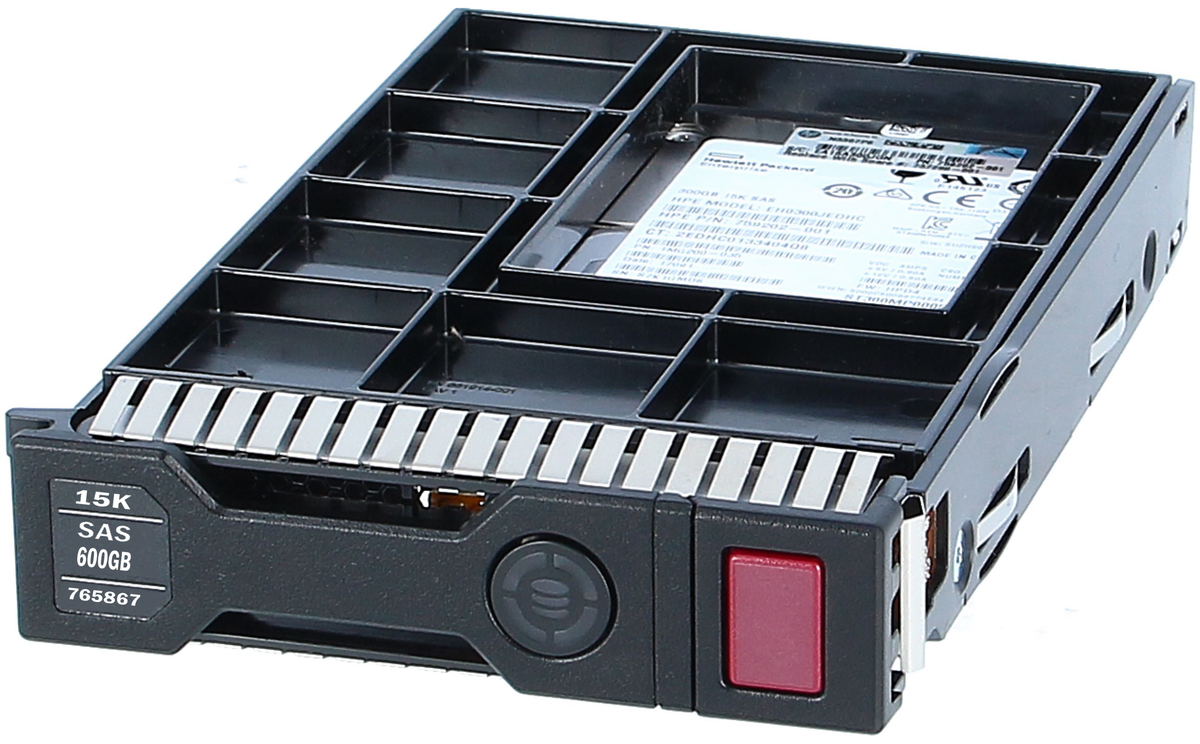

The HPE 748385-003-SCC is a 600GB, 15,000 RPM enterprise hard drive. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface. The drive comes with an HPE Smart Carrier Converter (SCC). It is intended for HPE ProLiant Gen8, Gen9 and Gen10 servers.
Key Features
- 600GB capacity at 15K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- Smart Carrier Converter
- Enterprise class
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 748385-003-SCC
Option Part Number: 765424-B21
Spare Part Number: 765867-001
Model Number: EH0600JDYTL
Assembly Number: 748385-003
General
Device Type: Hard Drive - Hot-Swap
Capacity: 600 GB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Workload Type: Enterprise
Bundled with: HPE SmartDrive carrier Converter
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
Drive Transfer Rate: 1.2 GBps (external)
Seek Time: 2.9 ms (average) / 5.9 ms (max)
Track-to-Track Seek Time: 0.15 ms
Spindle Speed: 15000 RPM
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bays: 3.5" LFF
Product Dimensions
Height: 1.10 inch
Width: 4.20 inch
Depth: 6.70 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant BL Series: BL420c Gen8 Gen9 (Gen8 Gen9) BL460c Gen8 Gen9 (Gen8 Gen9) BL465c Gen8 Gen9 (Gen8 Gen9) BL660c Gen8 Gen9 (Gen8 Gen9)
- HPE ProLiant DL Series: DL160 Gen8 Gen9 (Gen8 Gen9) DL320e Gen8 Gen9 (Gen8 Gen9) DL360e Gen8 Gen9 (Gen8 Gen9) DL360p Gen8 Gen9 (Gen8 Gen9) DL380e Gen8 Gen9 (Gen8 Gen9) DL380p Gen8 Gen9 (Gen8 Gen9) DL385p Gen8 Gen9 (Gen8 Gen9) DL560 Gen8 Gen9 (Gen8 Gen9)
- HPE ProLiant ML Series: ML350e Gen8 Gen9 (Gen8 Gen9) ML350p Gen8 Gen9 (Gen8 Gen9)
- HPE ProLiant SL Series: SL230s Gen8 Gen9 (Gen8 Gen9) SL250s Gen8 Gen9 (Gen8 Gen9)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
