Product Information

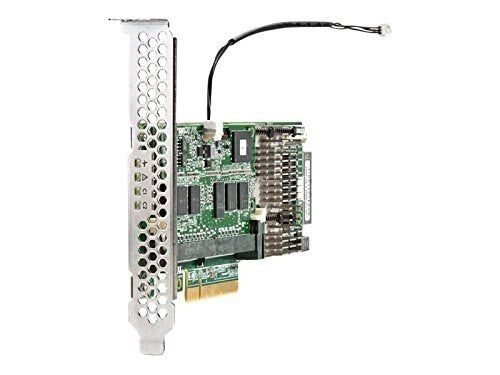

The HPE 749797-001 is a Smart Array P440 RAID controller with 4GB of flash backed write cache (FBWC) for HPE ProLiant Gen9 servers. It is a low profile PCIe 3.0 x8 card with one internal port running 12Gb/s SAS.
Key Features
- Eight internal physical links, with more internal capacity available through a SAS Expander Card
- Switch RAID levels while online, set a global online spare, and get a warning before a drive fails
- Transportable FBWC, so cached data can move to a replacement controller
- Works with the HPE Smart Storage Battery, which can back multiple Smart Array controllers
- Optional HPE SmartCache adds read and write acceleration
- Optional HPE Secure Encryption for data at rest on attached drives
- Predictive spare activation for faster rebuilds, even in recovery mode
- Configured with HPE Smart Storage Administrator, included in the server's Intelligent Provisioning
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 749797-001
Option Part Number: 726821-B21
Spare Part Number: 749797-001
General
Product Type: Storage controller (RAID) - Plug-in Card - Low Profile
Form Factor: Standard PCIe Plug-in Card
Controller
Host Bus: PCIe 3.0 x8
Cache: 4GB Flash-Backed Write Cache
Ports (Channels): 8 Physical Links Across 1 x8 Ports (Internal)
Transfer Rate: 12Gb/sec SAS per Physical Link 6Gb/sec SATA per Physical Link PCI Express Gen3 x8 Link Width
Drive Interface: SATA 6Gbps / SAS 12Gbps
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Supported Devices: Hard Drive, Disk Array (RAID)
Additional Features: HPE SmartCache (Optional License) HPE Secure Encryption (Optional License)
Connections
Ports: 1 x SATA 6Gb/s / SAS 12Gb/s (internal)
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, VMware ESXi 5, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware vSphere 5.5, SuSE Linux Enterprise Server 11 SP3, VMware ESXi 5.5, Ubuntu 14.04, Red Hat Enterprise Linux 7
Size and Weight
Height: 4.09 inch
Width: 5.30 inch
Depth: 1.23 inch
Weight: 1.00 lbs
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE Apollo 4200 Gen9, 4500 Gen9, 4510 Gen9, 4530 Gen9, 6000 Gen9
- HPE ProLiant DL Series: DL20 Gen9, DL20 Gen9 Solution, DL80 Gen9, DL120 Gen9, DL180 Gen9, DL360 Gen9, DL380 Gen9, DL380 Gen9 High Performance, DL560 Gen9, DL560 Gen9 Entry
- HPE ProLiant ML Series: ML30 Gen9, ML30 Gen9 Entry, ML30 Gen9 Solution, ML110 Gen9, ML150 Gen9, ML350 Gen9
- HPE ProLiant XL Series: XL170r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL270d Gen9
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
