Product Information

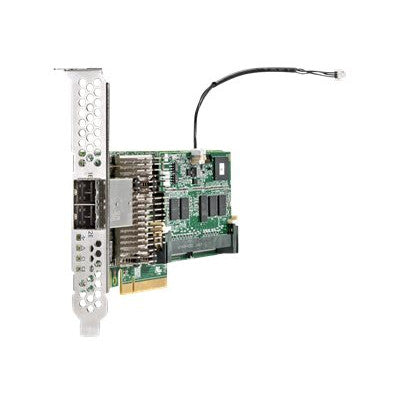

The HPE 749798-001 is a Smart Array P441 external RAID controller with 4GB of flash backed write cache (FBWC). It is a low profile PCIe 3.0 x8 card with two external ports, made for HPE ProLiant Gen9 servers and MSA 2040 SAN storage.
Key Features
- Eight external physical links for 12Gb/s SAS and 6Gb/s SATA
- Switch RAID levels while online, set a global online spare, and get a warning before a drive fails
- Transportable FBWC, so cached data can move to a replacement controller
- Works with the HPE Smart Storage Battery, which can back multiple Smart Array controllers
- RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM
- Speeds up messaging, database and general server workloads with 12Gb/s SAS to external 12Gb/s storage on ProLiant Gen9 servers
- Transportable 4GB DDR3-1866 FBWC with up to 14.9 GB/s of cache bandwidth to cut latency in write heavy workloads such as databases
- Optional HPE SmartCache adds read and write acceleration for databases and web pages
- Optional HPE Secure Encryption for data at rest on attached storage
- Predictive spare activation for faster rebuilds, even in recovery mode
- Configured with HPE Smart Storage Administrator, included in the server's Intelligent Provisioning
- Smart Array data compatibility makes upgrades simple, for example turning an existing JBOD into a more advanced disk array
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 749798-001
Option Part Number: 726825-B21
Spare Part Number: 749798-001
General
Product Type: Storage Controller (RAID) - Plug-in Card - Low Profile
Controller
Host Bus: PCI Express 3.0 x8
Cache Size: 4 GB
Channels: 8
Transfer Rate: 12 Gbit/s
Drive Interface: SATA 6Gbps / SAS 12Gbps
Max Drives: 200
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Supported Devices: Hard Drive, Disk Array (RAID)
Connections
Ports: 2 x SATA 6Gbps / SAS 12Gbps - 36 pin 4x Mini SAS HD (SFF-8643) (external)
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, SuSE Linux Enterprise Server 11 for x86, Microsoft Windows Server 2012, SuSE Linux Enterprise Server 11 x64 Edition, VMware ESXi 5.0 update 2, VMware ESXi 5.1 update 1, VMware vSphere 5.5
Size and Weight
Width: 2.3 inch (5.72 cm)
Depth: 9.5 inch (24.13 cm)
Height: 7.5 inch (19.05 cm)
Weight: 15.9 oz (450 g)
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE Apollo Series: Apollo 4200 Gen9, Apollo 4500 Gen9 and Apollo 6000 Gen9 Servers
- HPE ProLiant DL Series: DL20 Gen9, DL80 Gen9, DL120 Gen9, DL180 Gen9, DL360 Gen9, DL380 Gen9, DL560 Gen9 Servers
- HPE ProLiant ML Series: ML30 Gen9, ML110 Gen9, ML150 Gen9, ML350 Gen9 Servers
- HPE Disk Enclosures: D2600, D2700, D3600, D3600, D3700, D6000 and D6020 Disk Enclosures
- HPE Modular Storage Array: MSA 2040 SAN Storage
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
