Product Information

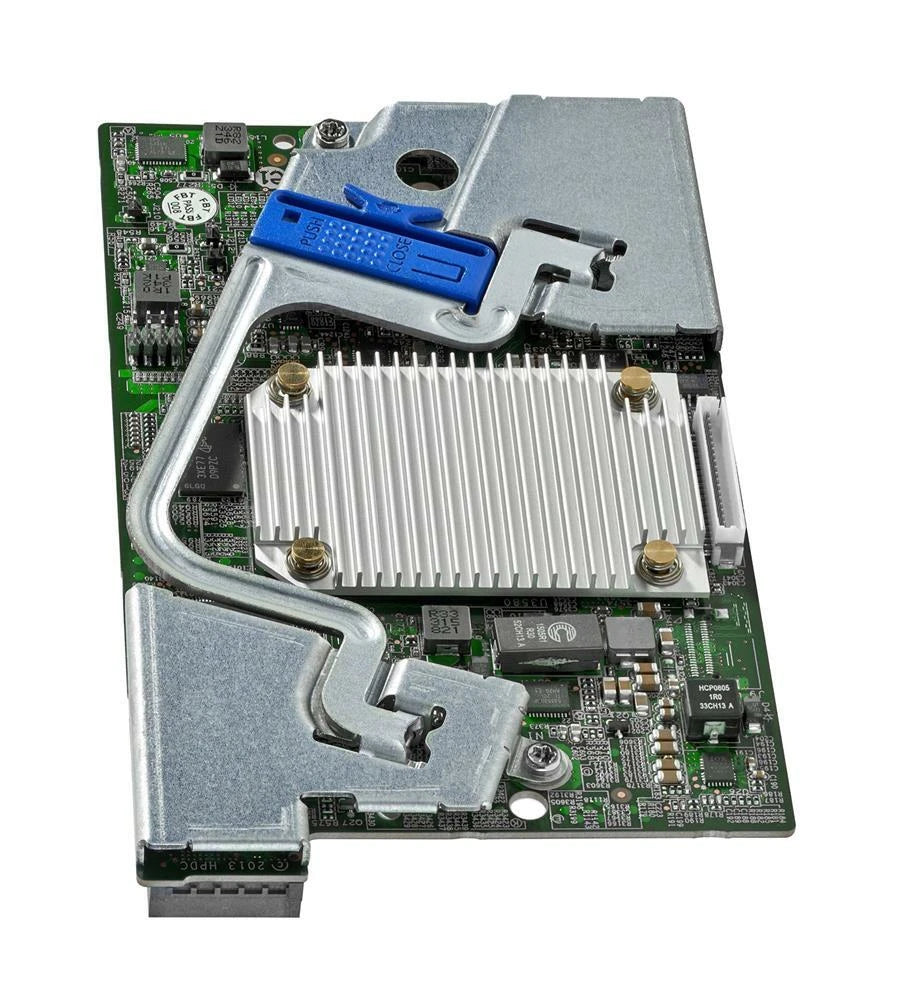

The HPE 749800-001 is a Smart Array P244br RAID controller with 1GB of flash backed write cache (FBWC) for HPE ProLiant Gen9 servers. It is a dual port PCIe 3.0 x8 controller supporting 12Gb/s SAS and 6Gb/s SATA.
Key Features
- Supports advanced RAID levels
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 749800-001
Option Part Number: 749680-B21
Spare Part Number: 749800-001
General
Product Type: Storage controller (RAID) - plug-in card
Controller
Host Bus: PCIe 3.0 x8
Drive Interface: SATA 6Gb/s / SAS 12Gb/s
Transfer Rate: 1.2 GBps
Cache Size: 1 GB
Supported Devices: Disk array (RAID)
Channels: 2
RAID Levels: RAID 0, RAID 1, RAID 10
Processor: MIPS
Features: Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), Native Command Queuing (NCQ), HPE SmartCache, HBA Mode, dynamic sector repair
Connections
Ports: 2 x SATA 6Gb/s / SAS 12Gb/s ( internal )
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP3, Ubuntu 14.04, Red Hat Enterprise Linux 7
Size and Weight
Width: 1.20 inch
Depth: 5.30 inch
Height: 3.60 inch
Weight: 15.87 oz
Power and Environment
Compliance: WEEE
Power Draw (operating): 20 Watt
Operating Temp (Min): 50 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen9, BL460c Gen9 Base, BL460c Gen9 Entry, BL460c Gen9 Performance
- HPE ProLiant WS Series: WS460c Gen9, WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
- HPE StoreEasy 3850 Gateway Single Node, 3850 Gateway Storage, 3850 Gateway Storage Blade
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
