Product Information

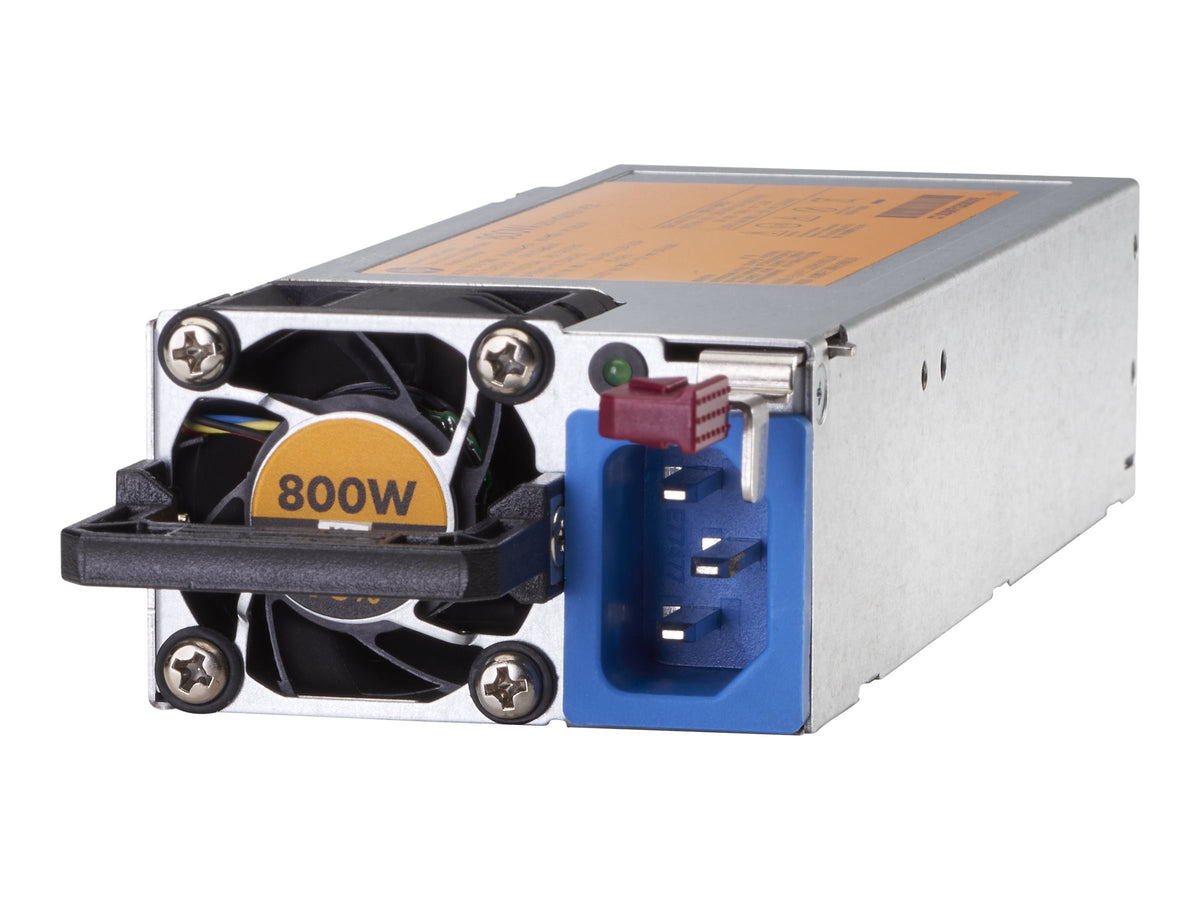

The HPE 754378-001 is an 800 watt Flex Slot Titanium hot plug power supply for HPE ProLiant Gen9 servers. It is 80 PLUS Titanium certified with 96% efficiency and runs on 200 to 240 volt AC.
Key Features
- 800W output, 200-240V AC input
- 96% efficiency, 80 PLUS Titanium
- Flex Slot form factor, 25% smaller than HPE Common Slot supplies, leaving more room for other server options
- Tool-less, hot plug design for fast swaps
- The Flex Slot family reaches up to 96% efficiency, which lowers power draw and waste
- One Flex Slot spare covers ProLiant Gen10, ProLiant 300 series Gen9 and Apollo 2000/4000 servers, keeping spares simple
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 754378-001
Option Part Number: 720482-B21
Spare Part Number: 754378-001
Model Number: DPS-800AB-10
Assembly Number: 734870-101
HPE GPN: 734868-001
General
Product Type: Power Supply - Hot-Plug / Redundant - Plug-in Module
Form Factor Spec: Flex Slot
Size and Weight
Height: 1.60 inch
Width: 2.70 inch
Depth: 8.90 inch
Weight: 32.10 oz
Power
Input Voltage: AC 200-240 V
Frequency: 50 - 60 Hz
Output Capacity: 800 Watt
Efficiency: 96%
Power Factor: 0.99
80 PLUS Rating: 80 PLUS Titanium
Power and Environment
Compliance: UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, CISPR
Operating Temp (Min): 41 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Apollo 4200 Gen9 for Google (800 Watt), 4510 Gen9 (800 Watt), 4530 (800 Watt)
- HPE ProLiant DL Series: DL360 Gen9 (800 Watt), DL360 Gen9 Base (800 Watt), DL360 Gen9 CMS (800 Watt), DL360 Gen9 Entry (800 Watt), DL360 Gen9 High Performance (800 Watt), DL360 Gen9 Performance (800 Watt), DL380 Gen9 (800 Watt), DL380 Gen9 Base (800 Watt), DL380 Gen9 Entry (800 Watt), DL380 Gen9 High Performance (800 Watt), DL380 Gen9 Performance (800 Watt), DL380z Gen9 (800 Watt)
- HPE ProLiant ML Series: ML350 Gen9 (800 Watt), ML350 Gen9 Base (800 Watt), ML350 Gen9 Entry (800 Watt), ML350 Gen9 Performance (800 Watt)
- HPE SimpliVity 380 Gen9 Node (800 Watt)
Not sure this power supply fits your system? Send us your server or enclosure model and the DatorPro team will confirm compatibility before you order.
