Product Information

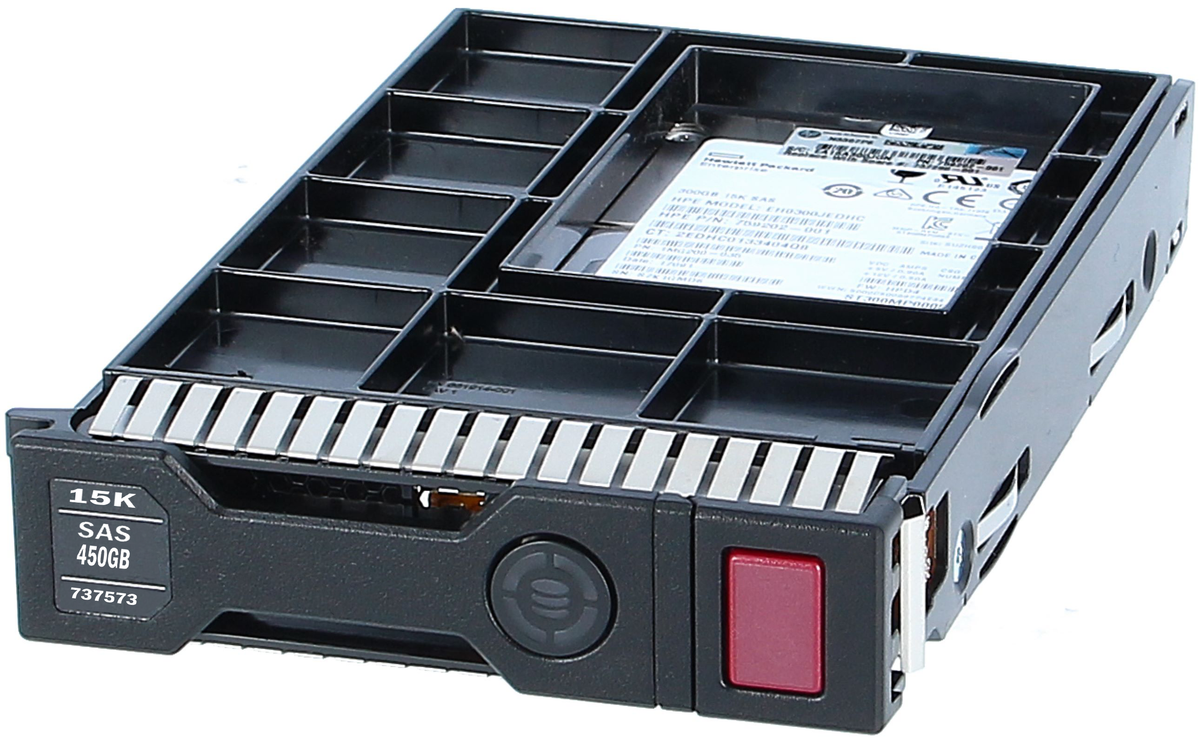

The HPE 759202-002-SCC is a 450GB enterprise hard drive that spins at 15,000 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface. The drive comes with an HPE Smart Carrier Converter (SCC). It is intended for HPE ProLiant Gen8, Gen9 and Gen10 servers.
Key Features
- 450GB capacity at 15K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- Smart Carrier Converter
- Enterprise class
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: 759202-002-SCC
Option Part Number: 737394-B21
Spare Part Number: 737573-001
Model Number: EH0450JEDHD
Assembly Number: 759202-002
General
Hard Drive Type: Internal Hard Drive
Capacity: 450 GB
Interface: SAS-12Gbps
Form Factor: 3.5 inch
Spindle Speed: 15000 RPM
External Data Transfer Rate: 1200 MBps
Bytes per Sector: 512
Plug Type: Hot Plug
Carrier Type: Smart Carrier Converter (SCC)
Workload Type: Enterprise
Bundled with: HPE SmartDrive Carrier Converter
Performance
Drive Transfer Rate: 1.2 GBps (external)
Seek Time: 2.9 ms (average) / 5.9 ms (max)
Track-to-Track Seek Time: 0.15 ms
Spindle Speed: 15000 RPM
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bays: 3.5" LFF
Product Dimensions
Width: 4.20 inch
Depth: 6.70 inch
Height: 1.10 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant BL Series: BL420c (Gen8 Gen9) BL460c (Gen8 Gen9 Gen10) BL465c (Gen8 Gen9)
- HPE ProLiant DL Series: DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL360 (Gen10) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL380 (Gen8 Gen9 Gen10) DL385 (Gen8 Gen9 Gen10) DL388 (Gen9 Gen10) DL560 (Gen8 Gen9 Gen10)
- HPE ProLiant ML Series: ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9 Gen10) ML350e (Gen8 Gen9)
- HPE ProLiant SL Series: SL200t (Gen8 Gen9) SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL2500 SL4550 (Gen8 Gen9) SL4545 (Gen8 Gen9) SL454x
- HPE Storage Arrays: D3600 D3700
- HPE StoreEasy: 1430 1440 1530 1540 1630 1640
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
