Product Information

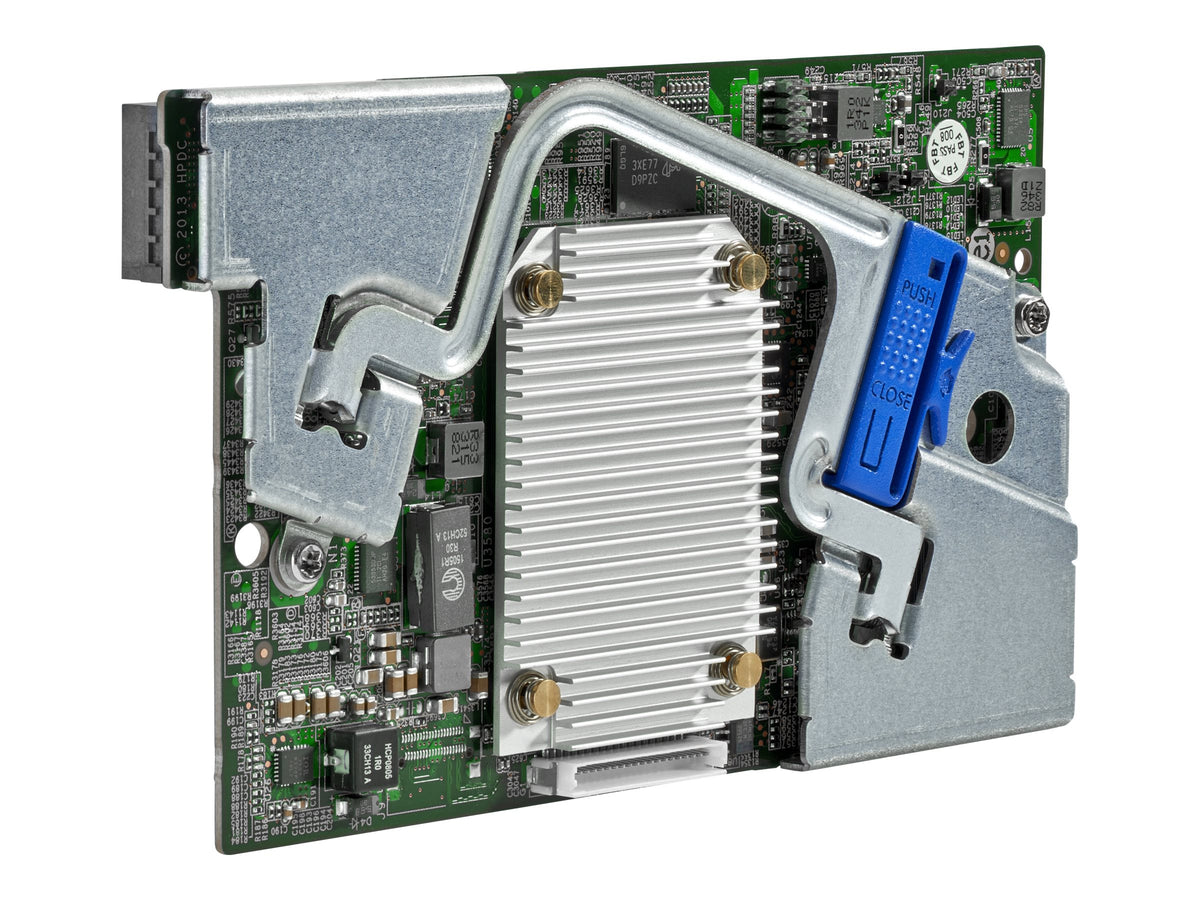

The HPE 761871-B21 is a Smart Array P244br RAID controller with 1GB of flash backed write cache (FBWC) for HPE ProLiant Gen9 servers. It is a dual port PCIe 3.0 x8 controller supporting 12Gb/s SAS and 6Gb/s SATA.
Key Features
- Supports advanced RAID levels
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 761871-B21
Option Part Number: 761871-B21
Spare Part Number: 749800-001
General
Product Type: Storage Controller (RAID) - Plug-in Card
Controller
Host Bus: PCIe 3.0 x8
Features: Flash Backed Write Cache (FBWC), Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), Native Command Queuing (NCQ), HP SmartCache, HBA Mode, dynamic sector repair
Drive Interface: SATA 6Gb/s / SAS 12Gb/s
Transfer Rate: 12 Gbit/s
Cache Size: 1 GB
Supported Devices: Disk Array (RAID)
Channels: 2
RAID Levels: RAID 0, RAID 1, RAID 10
Processor: MIPS
Connections
Ports: 2 x SATA 6Gb/s / SAS 12Gb/s (internal)
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP3, Ubuntu 14.04, Red Hat Enterprise Linux 7
Size and Weight
Width: 1.20 inch
Depth: 5.30 inch
Height: 3.60 inch
Weight: 15.87 oz
Power and Environment
Compliance: WEEE
Power Draw (operating): 20 Watt
Operating Temp (Min): 50 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE Apollo Series: 4510 Gen9, 4520 Gen9, 4530
- HPE ProLiant WS Series: WS460c Gen9 Graphics, WS460c Gen9 Graphics Expansion
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
