Product Information

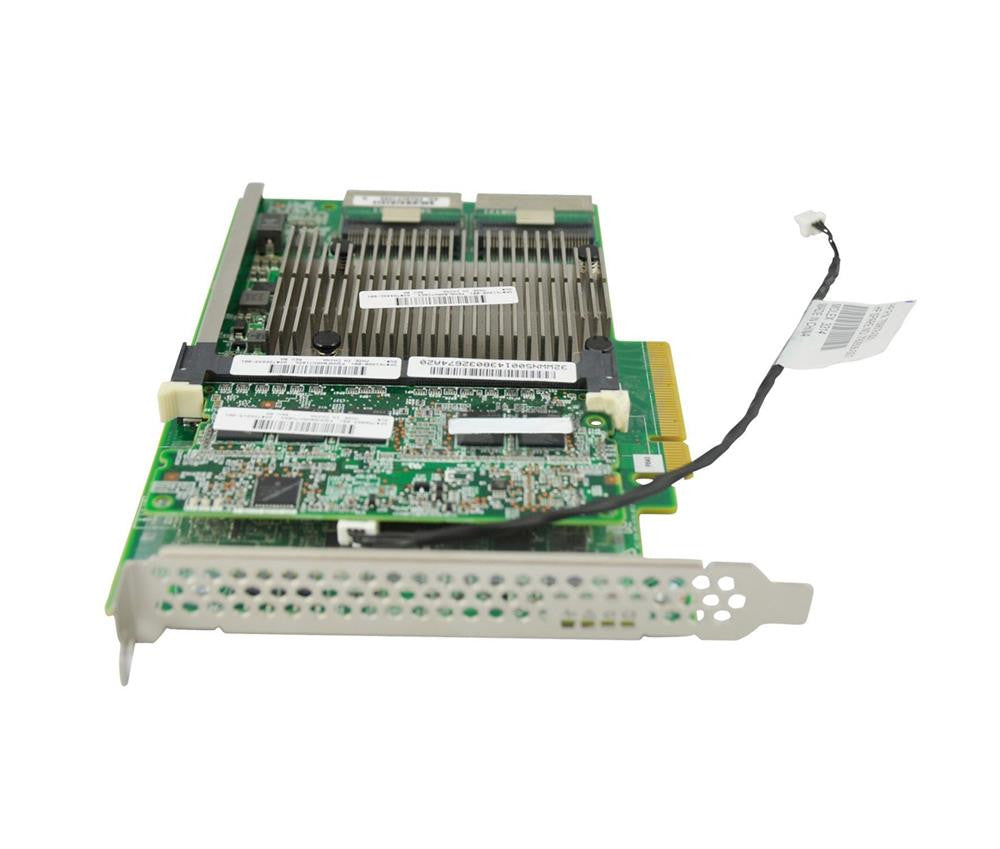

The HPE 761874-B21 is a Smart Array P840 full height RAID controller for rack and tower HPE ProLiant Gen9 servers. It is a dual port controller with a 12Gb/s SAS interface.
Key Features
- 16 internal physical links
- Connects up to 16 drives without a SAS Expander Card, giving SSDs a direct, lower latency path
- Switch RAID levels while online with FBWC protection, set a global online spare, and get a warning before a drive fails
- Transportable FBWC, so cached data can move to a replacement controller
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 761874-B21
Option Part Number: 761874-B21
Spare Part Number: 761880-001 (Does not include battery, FBWC cannot be ordered separately)
General
Product Type: Storage controller (RAID) - plug-in card
Controller
Host Bus: PCIe 3.0 x8
Cache Size: 4 GB
Channels: 16
Transfer Rate: 12 Gbps
Drive Interface: SATA-6Gbps / SAS-12Gbps
Max Drives: 16
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Supported Devices: Disk array (RAID)
Features: HPE SmartCache
Connections
Ports: 2 x SATA-6Gbps / SAS-12Gbps (internal)
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware ESXi 5.0 update 2, VMware ESXi 5.1 update 1, VMware vSphere 5.5, SuSE Linux Enterprise Server 11 SP3, Ubuntu 14.04, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5
Size and Weight
Depth: 6.60 inch
Height: 4.40 inch
Width: 0.60 inch
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE ProLiant DL Series: DL180 Gen9, DL560 Gen9 Entry, DL80 Gen9 Entry
- HPE ProLiant ML Series:ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
