Product Information

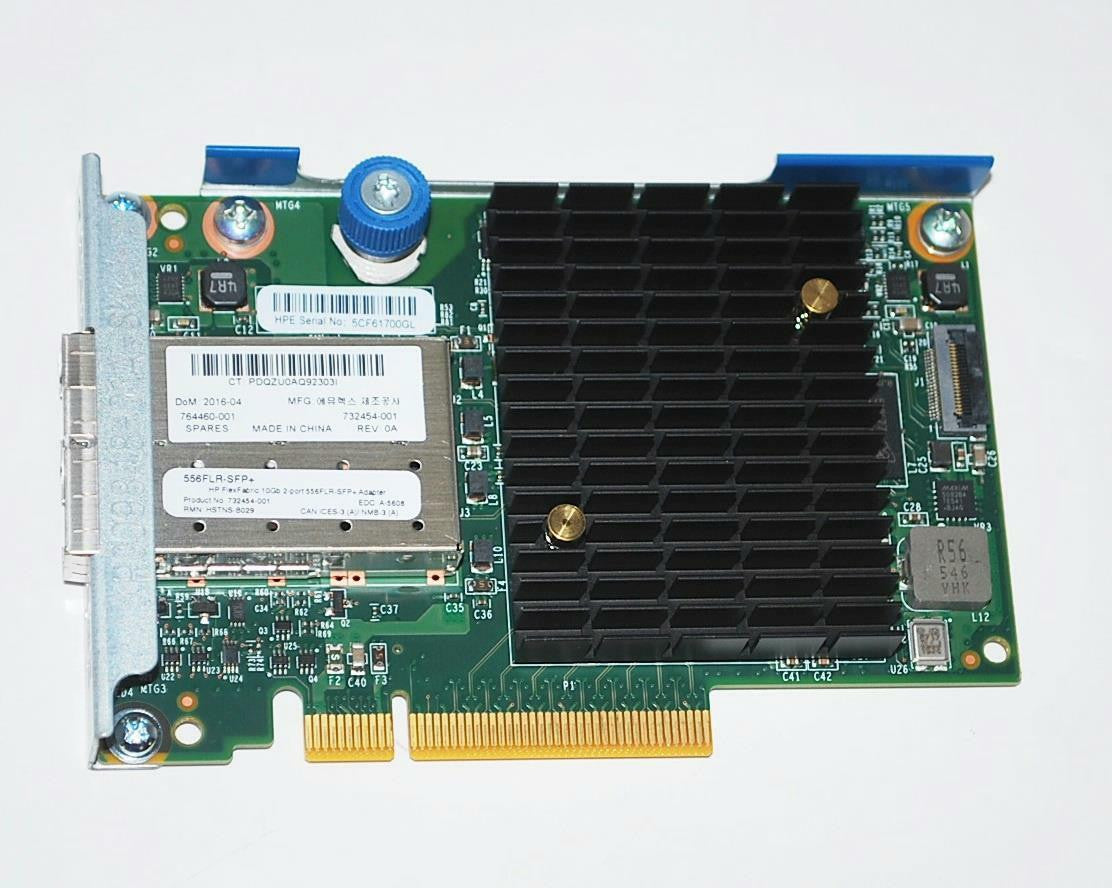

The HPE 764460-001 is the FlexFabric 10Gb 2-port 556FLR-SFP+, a converged 10GbE FlexibleLOM adapter that goes in the FlexibleLOM socket of HPE ProLiant Gen9 rack and tower servers. It runs on PCIe 3.0 x8 and carries 128 MB of onboard memory.
Key Features
- Emulex controller
- RDMA over Converged Ethernet (RoCE) lowers latency for Microsoft SQL, Hyper-V Live Migration and Storage Spaces with SMB Direct
- Tunnel offload for overlay networks, giving VMs more mobility and scale without a big speed hit
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 764460-001
Option Part Number: 727060-B21
Spare Part Number: 764460-001
General
Product Type: Network adapter
Adapter Details
Bus Type: PCI Express 3.0 x8
PCI Spec Revision: PCIe 3.0
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Features: Auto-negotiation, wake on LAN (WOL), Jumbo Frames support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS)
Processor: 1 - Emulex
RAM: 128 MB
Software and Compatibility
Supported Operating Systems: SunSoft Solaris 10, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 6, Red Hat Enterprise Linux 5.x, VMware ESX 4.1, VMware ESX 4.0
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1Qau, FCC Class A certified, UL, CISPR 22 Class A, EN 60950, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, MIC Class A, ACA, ACPI 1.1, BSMI Class A
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL380 Gen9 High Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance
- HPE ProLiant XL Series: XL170r Gen9, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G)
- HPE StoreEasy 1850, 3850 Gateway Single Node
