Product Information

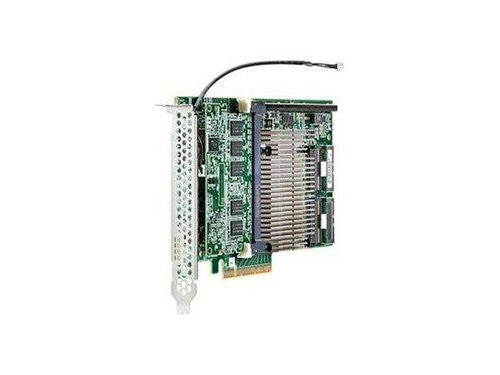

The HPE 766205-B21 is a Smart Array P840 RAID controller with 4GB of flash backed write cache (FBWC) for HPE ProLiant Gen9 servers. It is a 16 channel PCIe 3.0 x8 card that works with 12Gb/s SAS and 6Gb/s SATA drives.
Key Features
- RAID 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 766205-B21
Option Part Number: 766205-B21
Spare Part Number: 761880-001 (No Battery - No Cable)
General
Product Type: Storage Controller (RAID) - Plug-in Card
Controller
Host Bus: PCIe 3.0 x8
Drive Interface: SATA-6Gbps / SAS-12Gbps
Transfer Rate: 1.2 GBps
Cache Size: 4 GB
Supported Devices: Disk array (RAID)
Channels: 16
Max Drives: 16
RAID Levels: RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Features: HP SmartCache
Connections
Ports: SATA 6Gb/s SAS 12Gb/s
Cables Included: 1 x SAS cable
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware ESXi 5.0 update 2, VMware ESXi 5.1 update 1, VMware vSphere 5.5, SuSE Linux Enterprise Server 11 SP3, Ubuntu 14.04, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5
Size and Weight
Depth: 6.60 inch
Height: 4.40 inch
Width: 0.60 inch
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE ProLiant DL Series: DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 Entry, DL360 Gen9 Performance
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
