Product Information

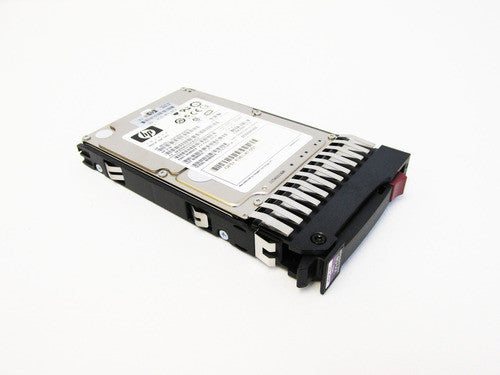

Made for HPE ProLiant Gen1 through Gen7 servers, the HPE 777747-001 gives you 1.2 TB of enterprise class capacity in a 2.5 inch SFF (small form factor) package. It runs at 10,000 RPM and links to the controller over a SAS 6Gb/s interface.
SAS is designed for data center duty, where storage has to stay online around the clock and serve many users at once.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 777747-001
Drive Details
Drive Type: Hard Drive - Hot-Swap
Storage Capacity: 1.2 TB
Host Interface: SAS 6Gbps
Form Factor: 2.5 inch SFF
Cache Buffer: 64 MB
Features: Dual-Port, Quick-Release
Ships With: HPE Standard Carrier
Performance
Rotational Speed: 10000 RPM
External Transfer Rate: 600 MBps
Connections
Ports: 1 x Serial Attached SCSI 2
Fits Bay: 1 x hot-swap - 2.5 inch SFF
Size and Weight
Height: 0.63 inch (1.60 cm)
Width: 3.10 inch (7.87 cm)
Depth: 5.45 inch (13.84 cm)
Operating Environment
Operating Temp (Min): 50 °F
Operating Temp (Max): 95 °F
Compatible Systems
- HPE ProLiant BL Series: BL20p (G4) BL45p (G2) BL460c (G6 G7) BL465c (G1 G5 G6 G7) BL480c (BL620c G7)BL680c (G5 G6 G7) BL685c (G6 G7)
- HPE ProLiant DL Series: DL120 (G6 G7) DL160 (G6 G7) DL160se (G6 G7) DL165 (G6 G7) DL170e (G6 G7) DL170h (G6 G7) DL180 (G6 G7) DL320 (G6 G7) DL360 (G4p G5 G6 G7) DL365 (G1 G5 G6 G7)DL370 (G6 G7) DL380 (G4 G5 G6 G7) DL385 (G1 G2 G3 G4 G5/G5p G6 G7) DL580 (G3 G4 G5 G6 G7) DL585 (G2 G3 G4 G6 G7) DL785 (G6)
- HPE ProLiant ML Series: ML110 (G7) ML350 (G5 G6 G7) ML370 (G5 G6 G7) ML570 (G3 G4 G5)
- HPE ProLiant SL Series: SL390s (G6 G7)
- HPE ProLiant WS Series: WS460c (G6 G7)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
