Product Information

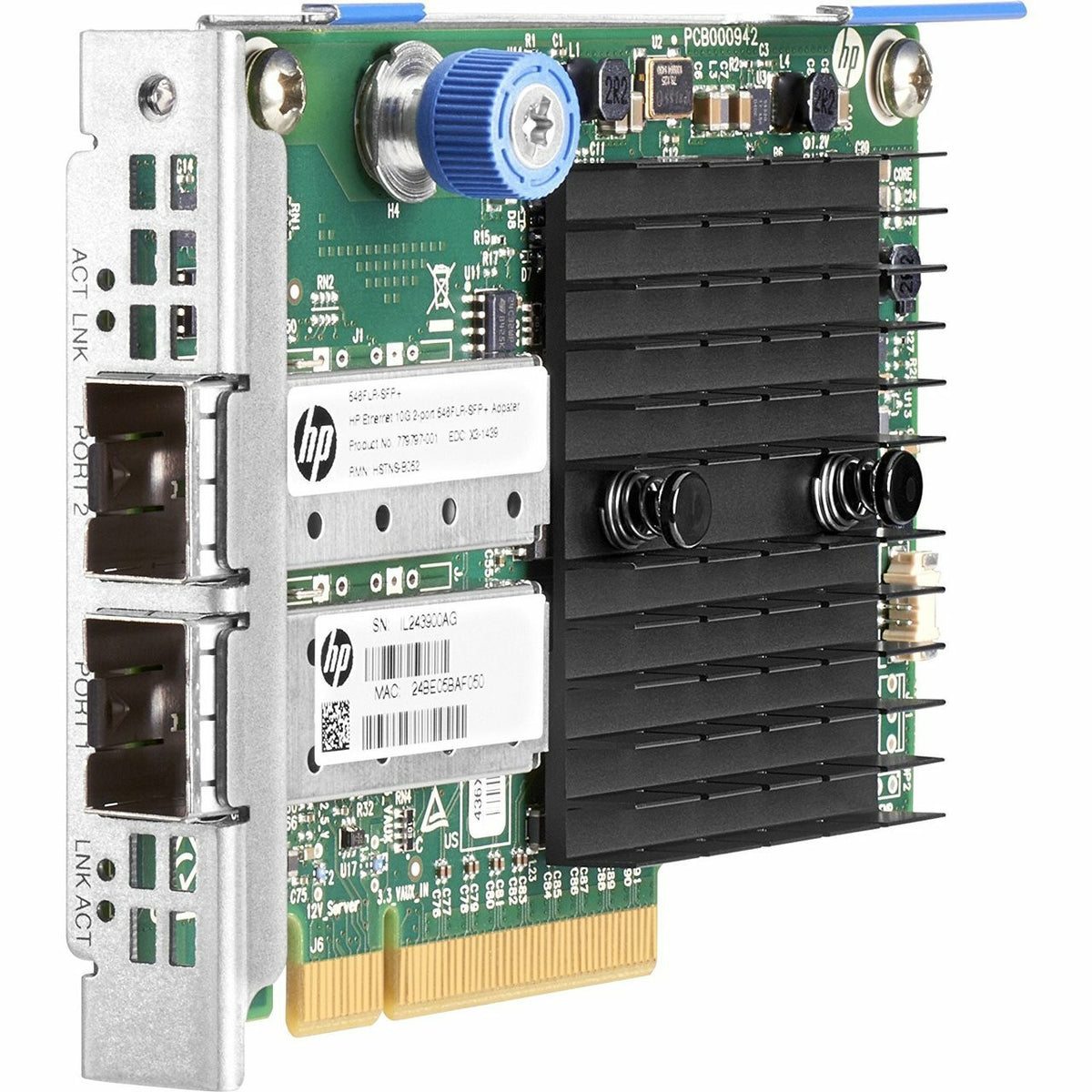

The HPE 779797-001 is the 546FLR-SFP+, a dual port 10Gb SFP+ converged Ethernet FlexibleLOM adapter for HPE ProLiant Gen8 and Gen9 servers, with a PCIe 3.0 x8 interface.
Key Features
- Mellanox ConnectX-3 controller
- IPv4 and IPv6, QoS and jumbo frames
- PXE boot and RoCE (RDMA over Converged Ethernet)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 779797-001
Option Part Number: 779799-B21
Spare Part Number: 790315-001
Model Number: 779797-001
General
Product Type: Network adapter
Form Factor: Plug-in card
Adapter Details
Bus Type: PCI Express 3.0 x8
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Network/Transport Protocol: TCP/IP
Features: IPv6 support, Quality of Service (QoS), Jumbo Frames support, IPv4 support, PXE support, RDMA over Converged Ethernet (RoCE)
Processor: Mellanox ConnectX-3
RAM: 128 MB
Connections
Network Ports: 10 Gigabit SFP+ x 2
Ports: v2 x 10Gb Ethernet - SFP+
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2 SP1 (64-bits), Red Hat Enterprise Linux 6.5, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, SuSE Linux Enterprise Server 11 SP3 x64 Edition, VMware ESXi 5.1 update 3, VMware ESXi 5.5 update 2, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12
Size and Weight
Width: 2.20 inch
Depth: 9.50 inch
Height: 7.50 inch
Weight: 15.87 oz
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, FCC Class A certified, UL, CISPR 22 Class A, EN55024, EN55022 Class A, WHQL, ICES-003 Class A, WEEE, RoHS, MIC Class A, ACA, BSMI Class A, ACPI 1.1a, VCCI Class A
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 15 - 80% (non-condensing)
Compatible Systems
- HPE ProLiant DL Series: DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9 Entry, DL580 Gen8, DL580 Gen8 Base, DL580 Gen8 High Performance, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, DL80 Gen9 Entry
- HPE ProLiant ML Series: ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance
- HPE ProLiant XL Series: XL170r Gen9, XL190r Gen9
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
