Product Information

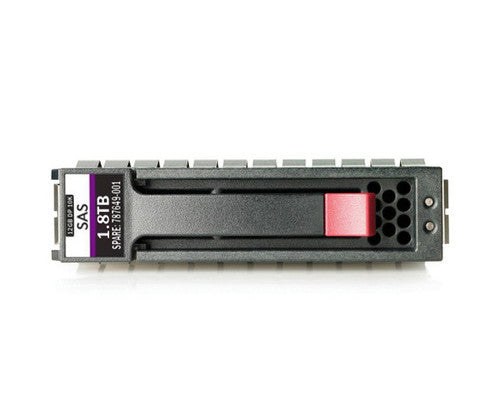

The HPE 787649-001 is a 1.8TB enterprise hard drive that spins at 10,000 RPM. It uses the 2.5 inch small form factor (SFF) with a dual port 12Gb SAS interface and 512e sector format. It is hot swappable. It is intended for HPE Modular Smart Array (MSA) 1040 and 2040 SAN storage.
Key Features
- 1.8TB capacity at 10K RPM
- Dual port SAS 12Gb/s interface
- 2.5 inch SFF
- 512e sector format
- Hot swap
- Enterprise class
Condition: New Sealed Spare
Warranty: Up to a 1-Year Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: 787649-001
Option Part Number: J9F49A
Spare Part Number: 787649-001
Model Number: EG1800JEHMD
Model Number: EG1800JEMDB
Model Number: EG1800JFHMH
Model Number: EG001800JWJNR
Model Number: EG001800JWFVC
Model Number: EG001800JWJNL
Assembly Number: 787677-005
General
Device Type: Hard Drive - Hot-Swap
Capacity: 1.8 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Standard Carrier
Workload: Enterprise
Features: Dual Port, Advanced Format 512e
Bundled with: HPE Standard Carrier
Performance
Drive Transfer Rate: 12 Gb/sec (external)
Average Seek Time: 3.7 ms
Max Seek Time: 7.3 ms
Track-to-Track Seek Time: 0.1 ms
Spindle Speed: 10000 rpm
Expansion & Connectivity
Interfaces: 1 x SAS 12Gb/s
Compatible Bay: 2.5" SFF
Dimensions
Width: 3.10 inch
Height: 0.63 inch
Depth: 4.70 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE Modular Smart Array: MSA 1040 Dual Controller SFF Bundle, MSA 1040 Dual Controller SFF Storage, MSA 2040 SFF SAN Storage
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
