Product Information

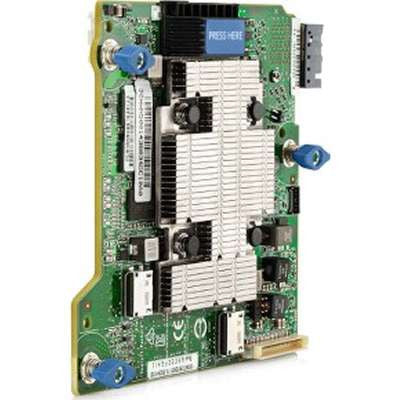

The HPE 789883-001 is a Smart Array P542D mezzanine RAID controller with 2GB of flash backed write cache (FBWC). It is a PCIe 3.0 x8 card with four ports running 12Gb/s SAS, made for HPE Synergy 480, 620, 660 and 680 Gen9 compute modules.
Key Features
- Eight external and eight internal physical links across four ports
- Also supports the HPE Apollo 6500 chassis with ProLiant XL270d servers, running RAID 0, 1, 5, 6, 10, 50, 60 and 10 ADM on all eight internal drives
- Works with internal zoned or direct attached SAS and SATA drives, and with drives in the HPE Synergy D3940 Storage Module
- HBA mode supports software defined storage such as Microsoft Storage Spaces and VMware Virtual SAN when used with D3940 Storage Modules
- Optional HPE SmartCache adds read and write acceleration
- Optional HPE Secure Encryption for data at rest on attached drives
- Switch RAID levels while online with FBWC protection, plus global online spare, early drive failure alerts and predictive spare activation
- Pair it with a D3940 Storage Module and an HPE Synergy 12Gb SAS Connection Module to map a logical JBOD to a compute module
- Configured with HPE Smart Storage Administrator, included in Intelligent Provisioning
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 789883-001
Option Part Number: 759557-B21
Spare Part Number: 789883-001
Assembly Number: 759559-001
General
Product Type: Storage Controller (RAID) - Plug-in Card
Form Factor: Mezzanine Card
Controller Model: P542D
Controller
Host Bus: PCI Express 3.0 x8
Cache: 2 GB Flash-Backed Write Cache (FBWC)
Cache Backup: Flash Backed Cache
Transfer Rate: 12Gb/s SAS per Physical Link, 6Gb/s SATA per Physical Link (PCI Express Gen3 x8 Link Width)
Max LUNs: 64
RAID Levels: Yes, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Additional Features: HPE SmartCache (Optional License), HPE Secure Encryption (Optional License)
Supported Devices: Hard Drive, Disk Array (RAID)
Connections
Internal SAS/SATA Ports: 8 Physical Links Across 2 x4 Ports
External SAS/SATA Ports: 8 Physical Links Across 2 x4 Ports
Ports: SATA 6Gb/s / SAS 12Gb/s (Internal)
Software and Compatibility
Supported Disk Enclosure: HPE Synergy D3940 Storage Modules
Supported Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Size and Weight
Height: 4.43 inch
Width: 4.89 inch
Depth: 1.38 inch
Weight: 0.48 lbs
Compatible Systems
- HPE Synergy 480 Gen9 Base Compute Module, 480 Gen9 Compute Module, 480 Gen9 Entry Compute Module, 480 Gen9 Performance Compute Module, 480 Gen9 Premium Compute Module, 620 Gen9 Base Compute Module, 620 Gen9 Compute Module, 620 Gen9 Entry Compute Module, 620 Gen9 Performance Compute Module, 620 Gen9 Premium Compute Module, 660 Gen9 Base Compute Module, 660 Gen9 Compute Module, 660 Gen9 Entry Compute Module, 660 Gen9 Performance Compute Module, 660 Gen9 Premium Compute Module, 680 Gen9 Base Compute Module, 680 Gen9 Compute Module, 680 Gen9 Entry Compute Module, 680 Gen9 Performance Compute Module, 680 Gen9 Premium Compute Module
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
