Product Information

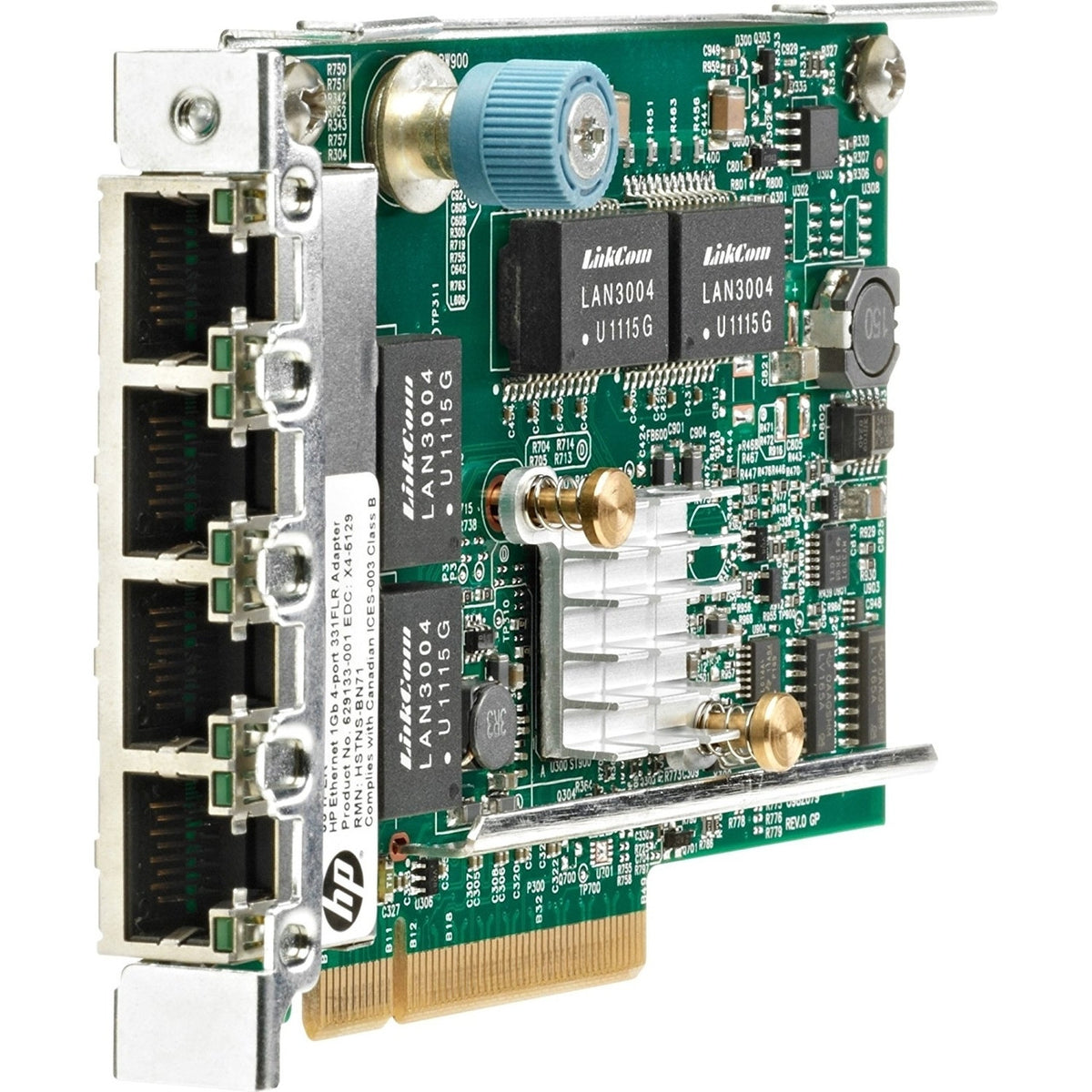

The HPE 789897-001 is the 331FLR, a quad port 1Gb Ethernet adapter with four RJ-45 ports and a PCIe 2.0 interface, for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- Broadcom BCM5719 controller
- VLAN support, full duplex and Energy Efficient Ethernet
- Jumbo frames, PXE, LSO and TSO
- MSI-X plus TCP/IP and UDP/IP checksum offload
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 789897-001
Option Part Number: 629135-B22
Spare Part Number: 789897-001
General
Product Type: Network Adapter
Form Factor: Plug-in card
Adapter Details
Bus Type: PCI Express 2.0 x4
Connectivity: Wired
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
Transfer Rate: 1 Gbps
Network/Transport Protocol: TCP/IP, UDP/IP
Remote Management: SNMP
Status Indicators: Link activity, port transmission speed
Features: VLAN support, full duplex mode, Jumbo Frames support, PXE support, Large Send Offload (LSO), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload
Processor: 1 x BCM5719 - Broadcom
Connections
Network Ports: Gigabit Ethernet x 4
Expansion Slots: 1 x FlexibleLOM
Ports: 4 x Ethernet 1000 - RJ-45
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, Red Hat Enterprise Linux 5.7, VMware ESXi 5.1, VMware ESXi 5.0
Size and Weight
Depth: 4.60 inch
Height: 3.00 inch
Power and Environment
Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az, FCC Class B certified, UL, VCCI Class B ITE, EN55024, FCC Part 15, EN 60950-1, WEEE, RoHS, ICES, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN22, KN24, EN55022:2006 Class B
Power Draw (operating): 5.5 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE Apollo Series: 4520 Gen9
- HPE Nimble Storage dHCI Large Solution with
- HPE ProLiant DL380 Gen10
- HPE ProLiant DL Series: DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL380 Gen9 High Performance, DL385 Gen10, DL385 Gen10 Base, DL385 Gen10 Entry, DL385 Gen10 High-Performance, DL385 Gen10 Performance, DL385 Gen10 SMB, DL385 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance
- HPE ProLiant XL Series: XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL170r Gen9, XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform, XL450 Gen10
- HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node
- HPE StoreEasy 1850, 3850 Gateway Single Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
