Product Information

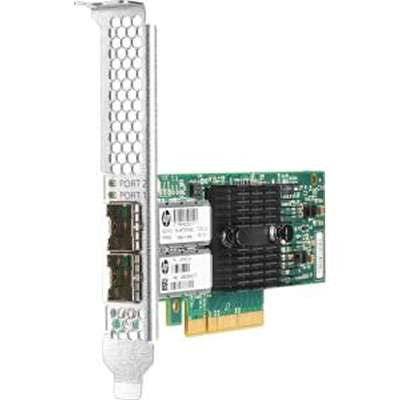

The HPE 790314-001 is the Ethernet 10Gb 2-port 546SFP+ adapter for HPE ProLiant Gen9 and Apollo Gen9 servers. It is aimed at cloud efficiency and at apps that lean hard on I/O, block storage or databases, where performance and security matter most.
Key Features
- Converged Ethernet bandwidth reaches 40 Gb/s bi-directional
- Built for high VM density and scale up
- RoCE (RDMA over Converged Ethernet)
- IPv4 and IPv6, QoS, PXE, LSO, TSO and TCP/IP checksum offload
- Part of HPE's extended catalog, so new stock often has a longer lead time
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 790314-001
Option Part Number: 779793-B21
Spare Part Number: 790314-001
General
Product Type: Network Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Jumbo Frame Size: 9.5 KB
Status Indicators: Status, link/activity
Features: IPv6 support, Quality of Service (QoS), IPv4 support, PXE support, Large Send Offload (LSO), TCP Segmentation Offload (TSO), TCP/IP checksum offload, RDMA over Converged Ethernet (RoCE)
Processor: 1 Intel
Connections
Network Ports: 10 Gigabit SFP+ x 2
Ports: 2 x 10Gb Ethernet - SFP+
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2008 R2 SP1 (64-bits), Red Hat Enterprise Linux 6.5, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, SuSE Linux Enterprise Server 11 SP3 x64 Edition, VMware ESXi 5.1 update 3, VMware ESXi 5.5 update 2, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, UL, BSMI, RoHS, FCC Part 15 A, VCCI V-3, AS/NZS, EN 61000-3-2:2006, EN 61000-3-3:2008, KN24, KN22 Class A, EN55024:1998 + A1 + A2, ICES-003 issue 4, EN 55022:2006+A1:2007 Class A, EN55022:2006 + A1:2007 Class A, CNS 13438 Class A
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant DL Series: DL380 Gen9, DL360 Gen9, DL180 Gen9, DL160 Gen9, DL120 Gen9, DL80 Gen9, DL60 Gen9
- HPE ProLiant ML Series: ML350 Gen9, ML150 Gen9, ML110 Gen9
- HPE Apollo: 6000 Gen9, 2000 Gen9
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
