Product Information

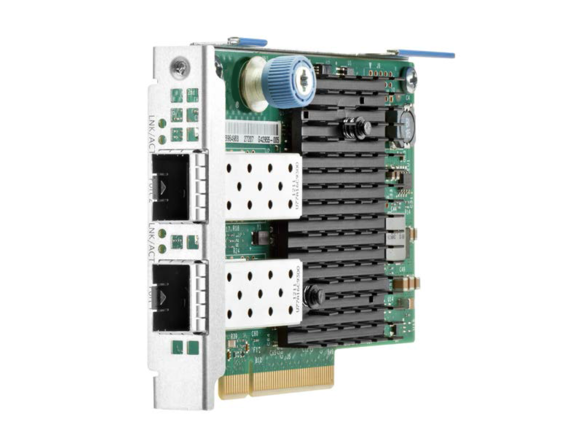

The HPE 790317-001 is the Ethernet 10Gb 2-port 562FLR-SFP+, a feature rich, low power FlexibleLOM adapter on PCIe 3.0 x8. It is made for HPE ProLiant Gen9 and Gen10 rack and density optimized servers and brings current SDN features.
Key Features
- Intel X710 controller, single chip 10GbE design for lower power
- Suits HPC, virtualization, security and consolidation
- 40 Gb/s across the whole adapter, 20 Gb/s bi-directional on each port
- SR-IOV, RSS, PXE boot and jumbo frames, with checksum and segmentation offloads
- IEEE 1588 time stamping
- VMware NetQueue, Microsoft VMQ and Intel VT-c
Also Supported
HPE Active Health System, OS specific configuration utilities, HPE Sea of Sensors 3D, Jumbo Frames, LED status indicators, SNMP management support, MSI-X, NIC teaming, VMware NetQueue and Microsoft VMQ virtualization support, PXE boot, TCP/UDP/IP checksum offloads
Condition: New Sealed Spare
Warranty: Up to a 1-Year Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 790317-001
Option Part Number: 727054-B21
Spare Part Number: 790317-001
General
Product Type: Network Adapter - 10Gbit Ethernet
Form Factor: FlexibleLOM
Adapter Details
Data Rate: Two ports, each at 20 Gb/s bi-directional; 40 Gb/s aggregate bi-directional theoretical bandwidth.
Bus Type: PCI Express 3.0 (Gen 3) x8
IEEE Standards: 802.3, 802.1ab, 802.3x, 802.3ad, 802.1p/ 802.1q, 802.3ae, 802.1Qau
Network Processor: Intel® X710 Controller
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Jumbo Frame Size: 9.5 KB
Status Indicators: Status, link/activity
Features: Wake on LAN (WOL), PXE support
Processor: 1 Intel (Intel® X710 Controller)
Connections
Ports: 10 Gigabit SFP+ x 2, 2 x 10Gb Ethernet - SFP+
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 6, Red Hat Enterprise Linux 5.x, Oracle Solaris 10, VMware ESX 4.1, VMware ESXi 4.1, Microsoft Windows Server 2012
Size and Weight
Width: 9.50 inch
Height: 2.25 inch
Depth: 7.50 inch
Weight: 1.00 lbs
Certifications and Approvals
RoHS Compliance: 6 of 6
USA: FCC Part 15 Class A
Canada: ICES-003, Issue 4
Japan: VCCI V3 (2010.04) Class A
International: EN55022:2006 + A1:2007 Class A, EN55024:1998+A1:2011+A2, EN61000-3-2:2006, EN61000-3-3:2008
Taiwan: BSMI, CNS13438 (2006) Class A
Australia/New Zealand (AS/NZS): EN55022:2006+A12007 Class A
Korea: KN22 Class A, KN24
Power and Environment
Power Consumption: 12 Watt
Operating Temp (Min): 0°C (32 °F)
Operating Temp (Max): 55°C (131 °F)
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL60 Gen9, DL80 Gen9, DL120 Gen9, DL160 Gen9, DL180 Gen9, DL360 Gen9, DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL360 Gen10 Solution, DL380 Gen9, DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 High Performance, DL380 Gen10 Performance, DL380 Gen10 Solution, DL385 Gen10, DL385 Gen10 Base, DL385 Gen10 Entry, DL385 Gen10 High-Performance, DL385 Gen10 Performance, DL385 Gen10 Solution, DL560 Gen9, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL580 Gen9, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance Servers
- HPE ProLiant XL Series: XL230a Gen9 NHP Compute Tray (12G), XL450 Gen10 Servers
- HPE Apollo 2000 Series: XL170r Gen9, XL190r Gen9 Servers
- HPE Apollo 4200 Gen9 Server
- HPE Apollo 4500 XL450 Gen9 Server
- HPE Apollo 4520 Gen9 Server
- HPE Apollo 6000 Series: XL230a Gen9, XL250a Gen9s Servers
- HPE Apollo 6500 XL270d Gen9 Server
- HPE StoreEasy 1850, 3850 Gateway Single Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
