Product Information

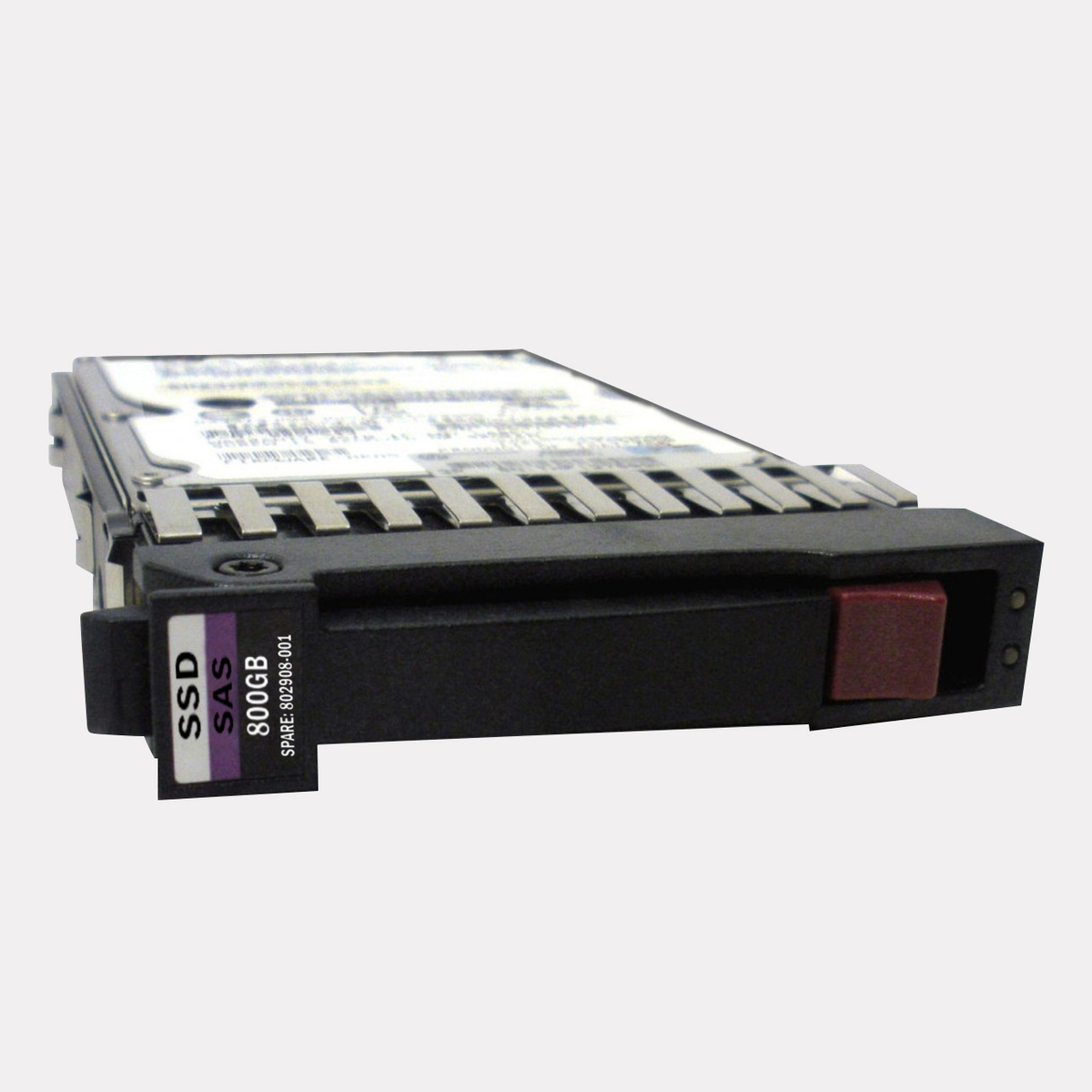

The HPE 802908-001 is an 800GB write intensive Enterprise Performance class solid state drive in the 2.5 inch small form factor (SFF) with a 12Gb SAS interface. The drive is rated for HPE High Endurance. It comes in an HPE standard carrier.
Key Features
- 800GB capacity
- SAS 12Gb/s interface
- 2.5 inch SFF
- Write Intensive workload
- Enterprise Performance class
- High Endurance
- HPE standard carrier
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: 802908-001
Option Part Number: 802584-B21
Spare Part Number: 802908-001
Model Number: EO0800JEFPF
Assembly Number: 765290-003
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 800 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory
Type: Multi-Level Cell (MLC)
Plug Type: Hot Pluggable
Carrier Type: Standard Carrier
Workload Type: Enterprise
Performance
Features: High Endurance
Bundled with: HPE Standard Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch)
Performance
Endurance DWPD (Drive Writes Per Day): 25
Drive Transfer Rate: 12 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 1000
MAX Seq. Writes Throughput (MiB/s): 580
Random Read Average Latency uSec (4KiB,Q1): 120
Random Write Average Latency uSec (4KiB,Q1): 45
Random Read IOPS (4KiB, Q=16): 92000
Random Write IOPS (4KiB, Q=16): 82000
MAX Random Read IOPS (4KiB): 134000@Q64
MAX Random Write IOPS (4KiB): 82000@Q16
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 103000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 85000
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 2.03 Watt
Random Read: 3.49 Watt
Random Write: 3.49 Watt
Sequential Read: 4.80 Watt
Sequential Write: 8.52 Watt
Random Read/Write: 3.49 Watt
Compatible Systems
- HPE ProLiant BL Series: BL20p (Gen4) BL45p (Gen2) BL460c (Gen6 Gen7) BL465c (Gen1 Gen5 Gen6 Gen7) BL480c (BL620c Gen7) BL680c (Gen5 Gen6 Gen7) BL685c (Gen6 Gen7) WS460c (Gen6 Gen7)
- HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7) DL160 (Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen6 Gen7) DL170e (Gen6 Gen7) DL170h (Gen6 Gen7) DL180 (Gen6 Gen7) DL320 (Gen6 Gen7) DL360 (Gen4p Gen5 Gen6 Gen7) DL365 (Gen1 Gen5 Gen6 Gen7) DL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen1 Gen2 G3 Gen4 Gen5/Gen5p Gen6 Gen7) DL580 (G3 Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 G3 Gen4 Gen6 Gen7) DL785 (Gen6)
- HPE ProLiant ML Series: ML 110 (Gen7) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7) ML570 (G3 Gen4 Gen5)
- HPE ProLiant SL Series: SL390s (Gen6 Gen7)
- HPE Storage Systems: D2700 MSA50 MSA60 MSA70 X1500 (Gen2) X16000 (Gen2) X1800 (Gen2) X3400 (Gen2) X3800 (Gen2)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
