Product Information

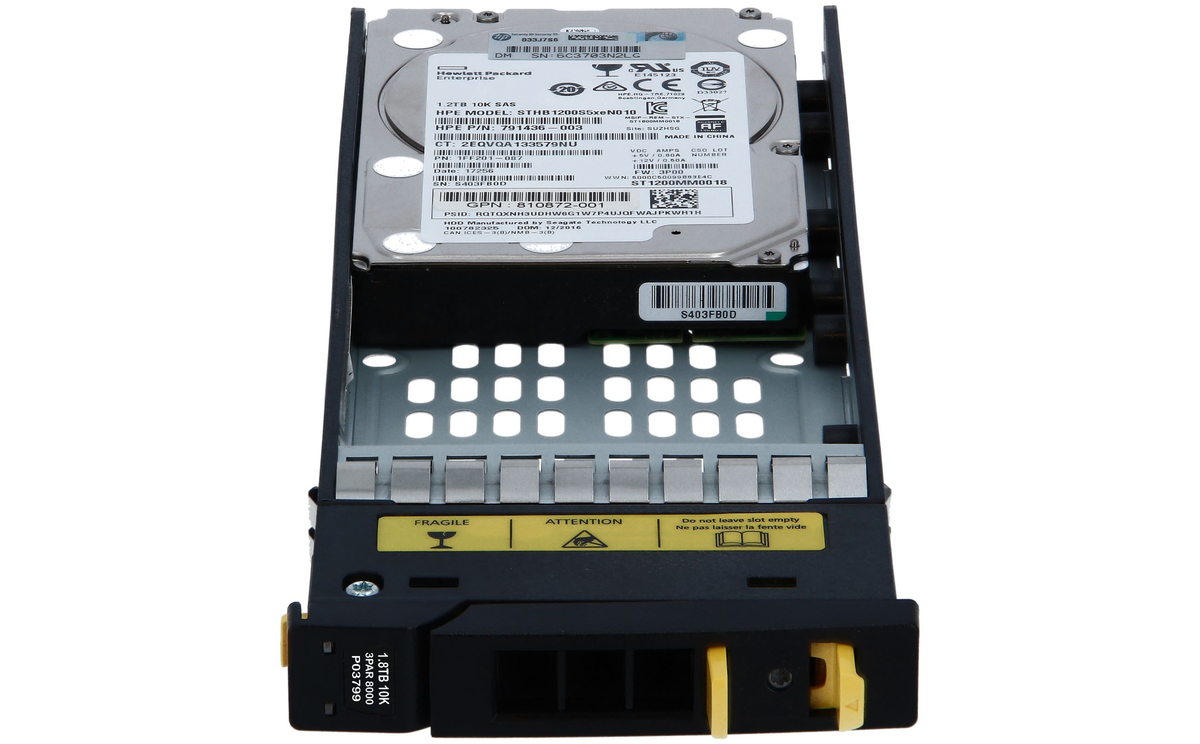

The HPE 810760-001 is a 1.8TB 3PAR hard drive that spins at 10,000 RPM. It uses the 2.5 inch small form factor (SFF) with a dual port 12Gb SAS interface. It is hot swappable. It is intended for HPE 3PAR StoreServ 8000 series drive enclosures.
Key Features
- 1.8TB capacity at 10K RPM
- Dual port SAS 12Gb/s interface
- 2.5 inch SFF
- Hot swap
- HPE 3PAR drive
Condition: New Sealed Spare
Warranty: Up to a 1-Year Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: 810760-001
Option Part Number: K2P94B
Spare Part Number: 810760-001
Assembly Number: 787175-005
General
Device Type: Hard Drive - Hot-Swap
Capacity: 1.8 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Carrier Type: StoreServ 3PAR Carrier
Plug Type: Hot Plug
Workload Type: 3PAR
Features: Dual Port
Bundled with: HPE StoreServ 3PAR Carrier
Performance
Drive Rotation Speed: 10000 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
Average Seek Time: 3.7 ms
Max Seek Time: 7.3 ms
Track-to-Track Seek Time: 0.1 ms
Expansion & Connectivity
Compatible Bay: 2.5" SFF
Interfaces: 1 x SAS-12Gb/s
Environmental Parameters
Min Operating Temperature: 50° F (10° C)
Max Operating Temperature: 95° F (35° C)
Compatible Systems
- HPE 3PAR StoreServ 8000, 8400 4-node Storage Base for Storage Centric Rack, 8440 2-node Storage Base for Storage Centric Rack
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
