Product Information

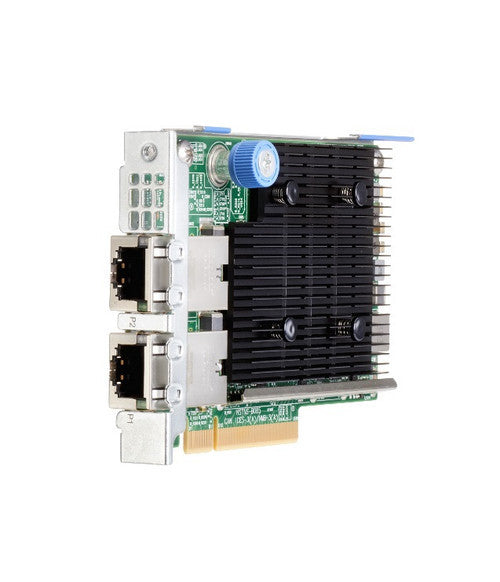

The HPE 813661-B21 is the Ethernet 10Gb 2-port 535T adapter for HPE ProLiant Gen10 servers. It is a PCIe 3.0 x8 card with two 10GBASE-T ports.
Key Features
- Audit Logs record firmware changes so authenticated updates can be traced
- Secure Boot checks that no rogue drivers load at startup, and signed firmware is verified before install
- SR-IOV for better virtual network performance with less CPU use
- RoCE v2 (RDMA) helps Live Migration and Microsoft SMB Direct and raises VM density
- VXLAN and NVGRE tunnel offloads plus DPDK for faster packet handling
- Runs on CAT 6A cable at lengths to 100 meters, and older 1GBASE-T gear still works with it, so cabling can stay as is
- Root of Trust design checks digitally signed firmware, helping block, detect and recover from cyberattacks
- Secure Boot, a device level firewall and other built in security tools
Also Supported
Audit Logs, Authenticated Updates, Checksum and segmentation offload, OS specific configuration utilities, Device-level Firewall, DPDK, HPE Sea of Sensors 3D, Hardware and firmware Root of Trust, IPv6, Jumbo Frames, MSI-X, NIC teaming, Network Partitioning (NPAR), VMware NetQueue and Microsoft VMQ virtualization support, LED status indicators, PXE boot, RDMA, RSS, Sanitization (secure erase), Secure Boot, SR-IOV, TCP/UDP/IP checksum offloads, Tunnel offload (VXLAN, NVGRE)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 813661-B21
Option Part Number: 813661-B21
Spare Part Number: 815669-001
General
Product Type: Network Adapter
Adapter Type: Ethernet 10Gb 2-Port 535T Adapter
Form Factor: Stand up (comes with Both Brackets)
Adapter Details
Network Processor: Broadcom BCM57416 (BCM957416A4160C)
Data Rate: 2 port, each at 20 Gb bidirectional, 40 Gb bidirectional per adapter
Bus Type: PCIe 3.0 x8
IEEE Standards: 802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad, 802.1AB, 802.1Qbg, 802.1Qbb
Jumbo Frames: 9600 KB
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Connections
Ports: 2
Expansion Slots: 2 (total) / 2 (free)
Size and Weight
Width: 9.84 inch
Height: 8.46 inch
Depth: 2.36 inch
Weight: 0.635 lbs
Power and Environment
Power Requirement (max): 19.60 Watt
Power Requirement (typical): 14.64 Watt
Operating Temp: 0° to 55°C (32° to 131°F)
Non-Operating Temp: -65° to 85° C (-85° to 185° F)
Operating Humidity: 10% to 90% non-condensing
Non-Operating Humidity: 5% to 95% non-condensing
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen10, DL120 Gen10, DL160 Gen10, DL180 Gen10, DL360 Gen10, DL380 Gen10, DL560 Gen10, DL580 Gen10, DL385 Gen10, DL325 Gen10 Servers
- HPE ProLiant ML Series: ML110 Gen10, ML30 Gen10, ML350 Gen10 Servers
- HPE Apollo 2000 XL170r Gen10, XL190r Gen10 Servers
- HPE Apollo 4500 XL450 Gen10 Server
- HPE Apollo 6000 XL230k Gen10 Server
