Product Information

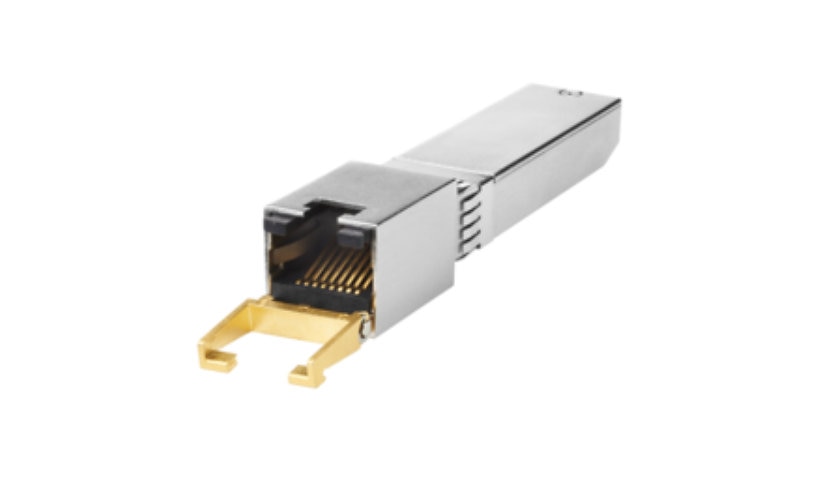

The HPE 813874-B21 is a copper SFP+ module that turns the 10 Gb SFP+ port of an HPE switch into a 10GBase-T RJ-45 port. It runs 10 Gigabit Ethernet over Cat 6a or Cat 7 cable for links up to 98 ft (about 30 m) and draws about 2.3 W. The listing names the HPE SN2010M switch and Virtual Connect Flex-10/10D and FlexFabric 10Gb/24-port modules as compatible.
Key Features
- 10GBase-T over copper
- RJ-45 connector
- Fits HPE SFP+ ports
- Reach up to 98 ft
- Cat 6a or Cat 7 cable
- About 2.3 W power draw
Product Information
Brand: HPE
Manufacturer: Hewlett-Packard
Product Line: HPE
Product Type: SFP+ transceiver module
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Cable Type: Ethernet 10GBase-T
Data Transfer Rate: 10 GBps
Max Transfer Distance: 98 ft
Connectivity
Interface Provided: 1 x Ethernet 10GBase-T - RJ-45
Left Connector SD Type: RJ-45
Power
Power Consumption Operational: 2.3 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Module
Dimensions and Weight
Height: 0.6 inch
Width: 0.5 inch
Depth: 2.8 inch
Weight: 0.64 ounce
Certifications and Listing
Compliant Standards: MSA SFF-8431, MSA SFF-8432
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
