Product Information

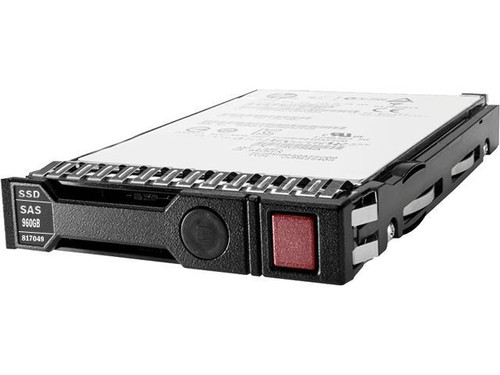

Part number 816568-B21 is an HPE 960GB Read Intensive SSD with a 12Gbps SAS interface in a 2.5 inch small form factor (SFF) design. Key features include HPE Smart Carrier (SC). It is intended for HPE ProLiant Gen8, Gen9 and Gen10 servers. Item condition: Brand New. Warranty: 3 Years.
HPE Read Intensive (RI) server SSDs provide strong performance and endurance for applications that depend on high random read IOPS. HPE Read Intensive (RI) SSDs are usually rated below 1 drive write per day. Every HPE SSD goes through more than 3.35 million hours of testing and qualification, so you get dependable, high performing drives. HPE Digitally Signed Firmware helps block unauthorized access to your data by confirming that the drive firmware comes from a trusted source. Clear icons on the HPE Smart Carrier show the drive's status at a glance, and a do not remove button helps prevent accidental data loss. HPE SmartSSD Wear Gauge support in management tools lets you track SSD lifespan and spot any drive that may be close to failure.
Fast, Reliable and Efficient Storage That Keeps Your Business Moving
HPE SSDs are a great match for big data analytics, cloud computing, active archiving, database applications and data warehousing.
Higher IOPS help lift the overall performance of your data center.
Full data path error detection helps keep your data accurate.
HPE offers a wide range of enhanced drive options across many capacity points.
Interface and form options include 12 Gb/s SAS, 6 Gb/s SATA, NVMe, M.2 and M.2 enablement kits.
HPE Value SAS SSDs Deliver About Twice the IOPS of SATA SSDs for Much Better Workload Performance
HPE Value SAS SSDs run at 12 Gbs, compared with 6 Gbs for SATA SSDs.
Built for enterprise application workloads, HPE Value SAS SSDs help you run more work on fewer servers by speeding up and consolidating transactional database workloads.
HPE Value SAS SSDs also cut the cost of storing, powering and maintaining servers while shrinking your data center footprint.
Offered in many capacity sizes, HPE Value SAS SSDs are a strong fit for read intensive and mixed use applications.
HPE Multi Vendor SSDs: Longer Product Lifecycles and Ready Availability on SATA SSDs
HPE expanded its SSD lineup with Multi Vendor SKUs, which give longer SKU lifecycles, supply that is available right away and attractive pricing on SATA SSDs.
With the HPE Multi Vendor SSD SKU program, the SATA SSD you receive meets or beats the published minimum performance. SAS (Serial Attached SCSI) builds on the proven SCSI software foundation and pairs it with a serial physical connection. As enterprise storage grows more demanding, needs such as higher capacity, denser storage, stronger security, easy scaling and reliable access matter more than ever. A modern data center has to stay online around the clock, serve many users at once, keep room to grow and allow maintenance without downtime. SAS handles every one of these requirements and delivers top tier performance at the same time.
About the Smart Carrier
HPE drives mounted in smart carriers give you a direct view of key status and management details. Status LED icons plus a rotating activity ring that tracks write activity show the drive's current state at a glance. A blue locator LED behind the handle can be switched on remotely to point technicians to the right drive bay, and a do not remove icon on the eject button lights up whenever pulling the drive would lose data. Built in a 2.5-inch form factor, this Read Intensive SSD (816568-B21) is rated for a data transfer rate of 1.2 GBps. Usable capacity: 960 GB. Small form factor (SFF) SSD, connected through a 12Gbps SAS interface. Includes a 3-year warranty.
Technical Details
Brand: HPE
MPN: 816568-B21
Option Part Number: 816568-B21
Spare Part Number: 817049-001
Model Number: VO960JFDGU
Assembly Number: 816559-002
General Specs
Device Type: Solid State Drive - Hot-Swap
Capacity: 960 GB
NAND Flash Memory Type: Triple-Layer Cell (TLC)
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Plug Type: Hot Pluggable
Bytes per Sector: 512
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Bundled with: HPE Smart Carrier
Performance Ratings
Endurance DWPD: 1
Drive Transfer Rate: 1.2 GBps (external)
MAX Seq. Reads Throughput (MiB/s): 940
MAX Seq. Writes Throughput (MiB/s): 900
Random Read Average Latency uSec (4KiB,Q1): 120
Random Write Average Latency uSec (4KiB,Q1): 40
Random Read IOPS (4KiB, Q=16): 110000
Random Write IOPS (4KiB, Q=16): 30000
Max Random Read IOPS (4KiB): 150000@Q64
Max Random Write IOPS (4KiB): 30000@Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 58000
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-2: 50500
Connectivity Details
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Power Usage
Idle Time: 3.65 Watt
Random Read: 4.03 Watt
Random Write: 4.03 Watt
Sequential Read: 4.95 Watt
Sequential Write: 4.66 Watt
Random Read/Write: 4.03 Watt
Operating Environment
Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F
Compatibility
Supported systems
HPE ProLiant BL Series: BL420c Gen8 (2.5 inch), BL460c Gen9 (2.5 inch), BL460c Gen9 Base (2.5 inch), BL460c Gen9 Entry (2.5 inch), BL460c Gen9 Performance (2.5 inch), BL465c Gen8 (2.5 inch)
HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
HPE ProLiant ML Series: ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML310e Gen8 v2 (2.5 inch), ML310e Gen8 v2 Base (2.5 inch), ML310e Gen8 v2 Entry (2.5 inch), ML310e Gen8 v2 Performance (2.5 inch)
HPE ProLiant XL Series: XL230a Gen9 NHPE Compute Tray (12G)
Need help confirming that this drive works with your server or storage system? Send us the model details and our team will check compatibility before you buy.
