Product Information

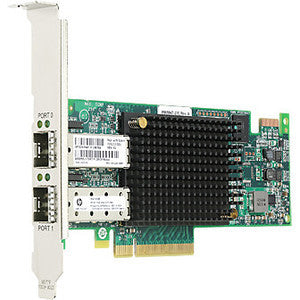

The HPE 489191-001 is an 82E dual port 8Gb Fibre Channel HBA for HPE ProLiant Gen3 through Gen8 servers. It is a low profile plug-in card with a PCIe 2.0 interface.
Key Features
- Double the I/O of 4Gb FC HBAs
- Works with existing 4Gb and 2Gb storage networks
- Quicker data access for rich media, virtualization, databases and backup/restore
- Includes features that lower power use in the server
- Ready for virtualized servers: one port can take on multiple N_Port IDs, so extra physical ports are not needed
- Better host utilization and application performance
- 8.5Gb/s 8Gb Fibre Channel (short wave) data rate
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 489191-001
Option Part Number: AJ763B
Spare Part Number: 697890-001, 489191-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 8Gb Fibre Channel (Short Wave)
Transfer Rate: 8.5 Gbps
Fibre Channel Features: FC-SP
Processor: Emulex
Connections
Ports: 8Gb Fibre Channel x 2 Processor / Memory, 2 x 8Gb Fibre Channel (short wave) - LC Multi-Mode - x 2
Expansion Slots: 2 (total) / 0 (free) x SFP+
Slot: 1 x PCI Express 2.0 x4 / PCI Express x8
In the Box: Low-Profile Bracket, Full-Height Bracket, 2 x 8 Gb SFP
Software and Compatibility
Supported Operating Systems: Linux, Microsoft Windows Server 2003, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5 for Intel x86 / AMD64 / EM64T, Microsoft Windows Server 2008, Red Hat Enterprise Linux 5.1 for Intel x86 / AMD64 / EM64T, Oracle Solaris x86 10
Size and Weight
Height: 3.00 inch
Width: 14.00 inch
Depth: 10.00 inch
Weight: 1.50 lbs
Power and Environment
Compliance: RoHS
Operating Humidity: 5 - 95%
Operating Temp (Max): 131 °F
Operating Temp (Min): 32 °F
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen6, DL160 Gen6 Special Server, DL160 Gen8, DL160 Gen8 Entry, DL160 Gen8 Performance, DL165 Gen7, DL165 Gen7 Base, DL165 Gen7 Entry, DL165 Gen7 Performance, DL165 Gen7 Special Server, DL180 Gen6, DL180 Gen6 Special Server, DL360 Gen7, DL360 Gen7 Base, DL360 Gen7 Central Management Server, DL360 Gen7 Efficiency, DL360 Gen7 Entry, DL360 Gen7 Performance, DL360 Gen7 Special Server, DL360e Gen8, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL370 Gen6, DL370 Gen6 Base, DL370 Gen6 High Performance, DL370 Gen6 Performance, DL370 Gen6 Special Server, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Efficiency, DL380 Gen7 Entry, DL380 Gen7 Performance, DL380 Gen7 Special Server, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage
- HPE ProLiant ML Series: ML350 Gen6, ML350 Gen6 Base, ML350 Gen6 Entry, ML350 Gen6 Performance, ML350 Gen6 Special Server, ML370 Gen6, ML370 Gen6 Base, ML370 Gen6 Entry, ML370 Gen6 Special Server
- HPE ProLiant SL Series: SL210t Gen8 1U Node
- HPE Modular Smart Array 1040 Dual Controller SFF Bundle, 2040 SAS Dual Controller LFF Storage, P2000 Gen3 10GbE iSCSI Dual Controller SFF Array System, P2000 Gen3 iSCSI Dual Controller SFF Bundle
- HPE StoreEasy 3850 Gateway Single Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
