Product Information

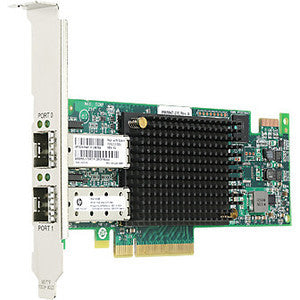

The HPE AJ763A is an 82E dual port 8Gb Fibre Channel HBA for HPE ProLiant Gen9 servers. It is a low profile plug-in card with a PCIe 2.0 interface.
Key Features
- Twice the I/O performance of a 4Gb HBA at only a small price difference
- Faster storage and retrieval for backup and restore, database transactions and rich media
- Helps get the most from server virtualization
- Install redundant HBAs for failover and keep servers connected to critical data
- Includes features that lower power use in the server
- 8.5Gb/s 8Gb Fibre Channel (short wave) data rate
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: AJ763A
Option Part Number: AJ763A
Spare Part Number: 489193-001
Model Number: LPE12002-HP
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 8Gb Fibre Channel (Short Wave)
Transfer Rate: 8.5 Gbps
Fibre Channel Features: FC-SP
Connections
Ports: 8Gb Fibre Channel x 2, 2 x 8Gb Fibre Channel (short wave) - LC multi-mode - x 2
Slot: 1 x PCI Express x8
In the Box: Low-profile bracket, 8 Gb SFP
Software and Compatibility
Supported Operating Systems: Linux, Microsoft Windows Server 2003, Red Hat Enterprise Linux 5 for Intel x86 / AMD64 / EM64T, Red Hat Enterprise Linux 5.1 for Intel x86 / AMD64 / EM64T, SuSE Linux Enterprise Server 10 SP1
Size and Weight
Depth: 6.60 inch
Height: 2.70 inch
Power and Environment
Operating Humidity: 5 - 95%
Operating Temp (Max): 131 °F
Operating Temp (Min): 32 °F
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen9 DL60 Gen9 DL80 Gen9 DL120 Gen9 DL160 Gen9 DL180 Gen9 DL360 Gen9 DL380 Gen9 DL560 Gen9 DL580 Gen9
- HPE ProLiant ML Series: ML350 Gen9
- HPE Apollo 2000 Gen9 Apollo 4200/4500 Gen9
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
