Product Information

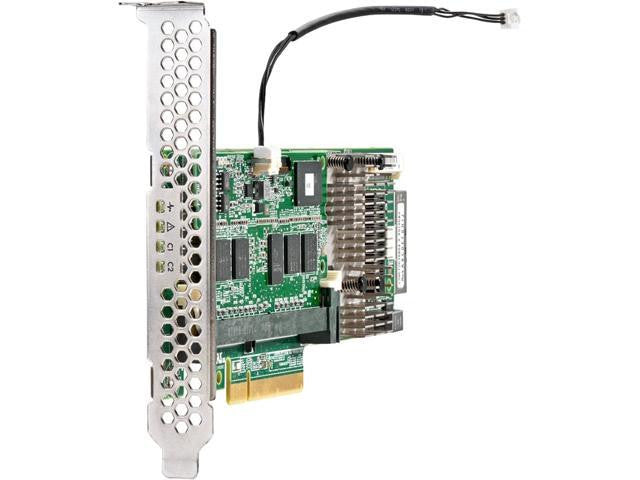

The HPE 830057-001 is a Smart Array P440 RAID controller with 2GB of flash backed write cache (FBWC) for HPE ProLiant Gen9 servers. It is a single port PCIe 3.0 x8 internal controller for 12Gb/s SAS and 6Gb/s SATA drives.
Key Features
- RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 830057-001
Option Part Number: 820834-B21
Spare Part Number: 830057-001
General
Product Type: Storage Controller (RAID) - Plug-in Card - Low Profile
Controller
Host Bus: PCI Express 3.0 x8
Drive Interface: SATA 6Gb/s / SAS 12Gb/s
Transfer Rate: 12 Gbit/s
Cache Size: 2 GB
Supported Devices: Hard drive, Disk Array (RAID)
Channels: 8
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Connections
Ports: 1 x SATA 6Gb/s / SAS 12Gb/s (internal)
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2008 R2, VMware ESXi 5, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware vSphere 5.5, SuSE Linux Enterprise Server 11 SP3, VMware ESXi 5.5, Ubuntu 14.04, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5
Power and Environment
Compliance: WEEE
Compatible Systems
- HPE ProLiant DL Series: DL180 Gen9, DL20 Gen9 Solution
- HPE ProLiant ML Series: ML30 Gen9 Entry, ML30 Gen9 Solution
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
