Product Information

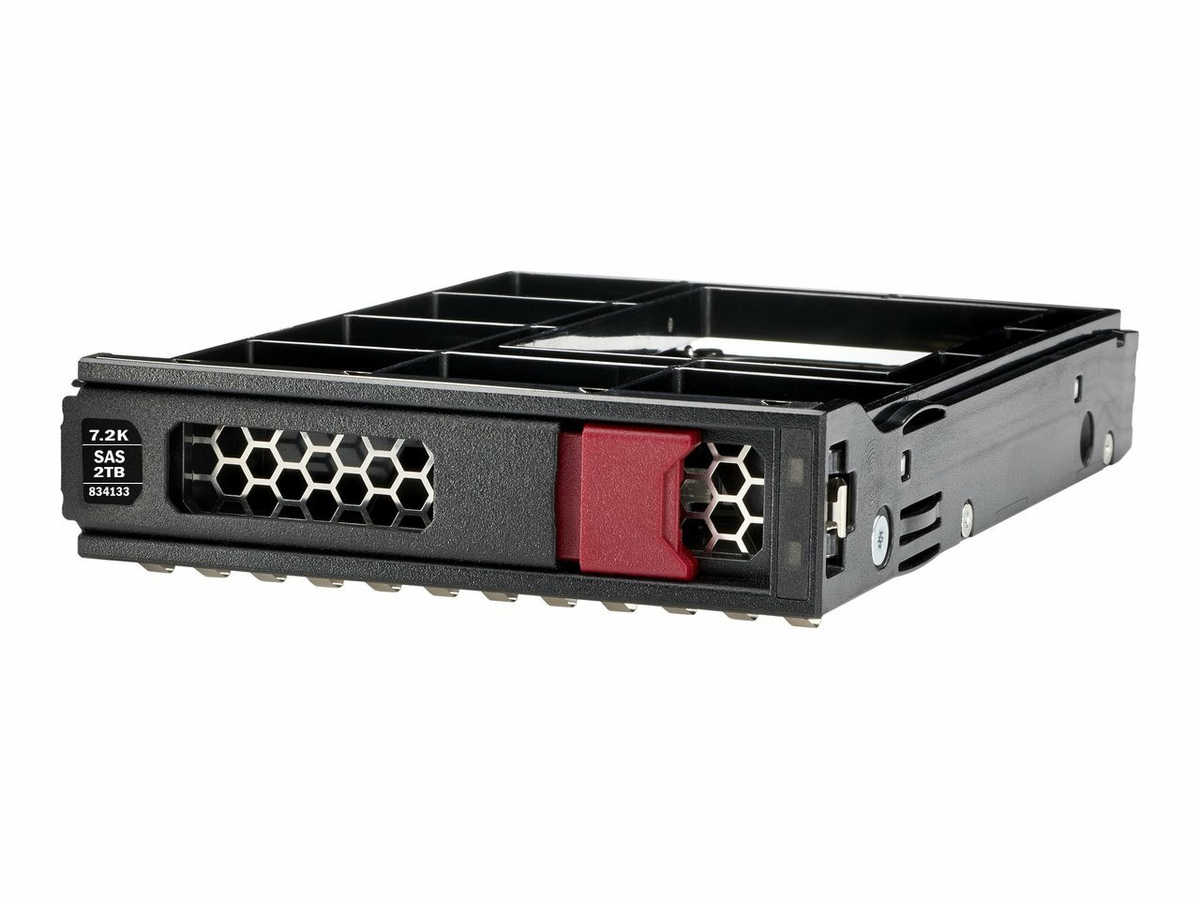

The HPE 833926-H21 is a 2TB midline hard drive that spins at 7,200 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface. The drive comes with HPE digitally signed firmware and a low profile carrier. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 2TB capacity at 7.2K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- Digitally signed firmware
- Low Profile carrier
- Midline class
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: 833926-H21
Option Part Number: 833926-H21
Spare Part Number: 834133-001
Model Number: MB2000JVYZN
Model Number: MB2000JFEPA
Assembly Number: 846523-002
Assembly Number: 820409-001
General
Device Type: Hard drive
Capacity: 2 TB
Form Factor: 3.5 inch LFF Low Profile
Interface: SAS 12Gbps
Drive Technology (Fill): Air
Plug Type: Hot Pluggable
Carrier Type: Low Profile Carrier (LPC)
Features: Digitally Signed Firmware
Workload Type: Midline
Bundled with: HPE Low Profile Carrier
Performance
Drive Transfer Rate: 12 Gb/sec (external)
Spindle Speed: 7200 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 200
128Kib Random Rd (IOPs): 108
128Kib Random 70% RD/ 30% WT (IOPs): 105
128Kib Random 50% RD/ 50% WT (IOPs): 105
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF Power Consumption Idle Time: 4.70 Watt
Random Read: 8.30 Watt
Random Write: 8.30 Watt
Sequential Read: 7.40 Watt
Sequential Write: 5.80 Watt
Product Dimensions
Height: 5.80 inch
Width: 8.60 inch
Depth: 10.00 inch
Compatible Systems
- HPE Apollo 4200 Gen9 for Google (3.5inch)
- HPE Nimble Storage dHCI Medium Solution with
- HPE ProLiant DL325 Gen10 Plus (3.5inch)
- HPE ProLiant DL Series: DL160 Gen10 (3.5inch), DL160 Gen10 Base (3.5inch), DL160 Gen10 Entry (3.5inch), DL160 Gen10 SMB (3.5inch), DL180 Gen10 (3.5inch), DL180 Gen10 Entry (3.5inch), DL20 Gen10 (3.5inch), DL20 Gen10 Entry (3.5inch), DL20 Gen10 Performance (3.5inch), DL20 Gen10 solution (3.5inch), DL325 Gen10 Base (3.5inch), DL325 Gen10 Plus (3.5inch), DL325 Gen10 Solution (3.5inch), DL385 Gen10 Plus (3.5inch), DL385 Gen10 Plus Entry (3.5inch), DX170r Gen10 (3.5inch), DX2600 Gen10 Premium (3.5inch LFF)
- HPE ProLiant ML Series: ML110 Gen10 (3.5inch), ML110 Gen10 Entry (3.5inch), ML110 Gen10 Performance (3.5inch), ML110 Gen10 Solution (3.5inch), ML30 Gen10 (3.5inch), ML30 Gen10 Entry (3.5inch), ML30 Gen10 Performance (3.5inch), ML30 Gen10 Solution (3.5inch), ML350 Gen10 (3.5inch), ML350 Gen10 Base (3.5inch), ML350 Gen10 Entry (3.5inch), ML350 Gen10 High Performance (3.5inch), ML350 Gen10 Performance (3.5inch), ML350 Gen10 SMB (3.5inch), ML350 Gen10 Solution (3.5inch), ML350 Gen10 Special Server (3.5inch), ML350 Gen10 Sub-Entry (3.5inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
