Product Information

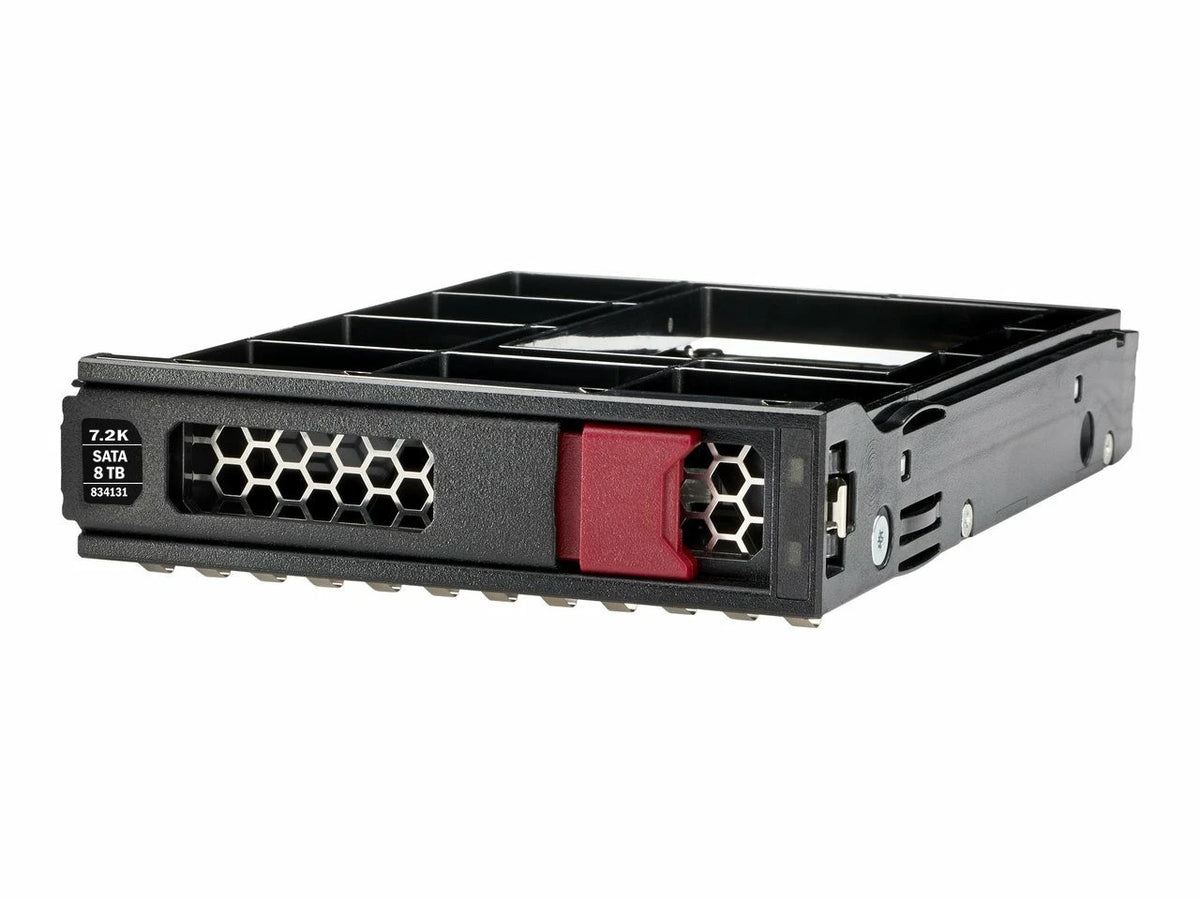

The HPE 834028-K21 gives you 8TB of storage in a midline hard drive running at 7,200 RPM. It uses the 3.5 inch large form factor (LFF) with a 6Gb SATA interface and 512e sector format. The drive comes with HPE digitally signed firmware and a low profile carrier. It is intended for HPE ProLiant Gen10 servers.
Key Features
- 8TB capacity at 7.2K RPM
- SATA 6Gb/s interface
- 3.5 inch LFF
- 512e sector format
- Digitally signed firmware
- Low Profile carrier
- Midline class
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: 834028-K21
Option Part Number: 834028-K21
Spare Part Number: 834131-001
Model Number: MB8000GFECR
Assembly Number: 819200-001
HPE GPN: 819205-004
General
Device Type: Hard Drive - Hot-Swap
Capacity: 8 TB
Form Factor: 3.5 inch LFF Low Profile
Interface: SATA 6Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Format Type: 512e
Carrier Type: Low Profile Carrier (LPC)
Workload Type: Midline
Features: Advanced format 512e, Digitally Signed Firmware
Bundled with: HPE Low Profile Reduced Depth Carrier
Performance
Drive Transfer Rate: 6 Gb/sec (external)
Spindle Speed: 7200 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 230 MiB/s
128Kib Random Rd (IOPs): 105 IOPs
128Kib Random 70% RD / 30% WT (IOPs): 110 IOPs
128Kib Random 50% RD / 50% WT (IOPs): 115 IOPs
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s - 7 pin Serial ATA
Compatible Bay: 3.5" LFF Low Profile Power Power Idle Time (Watts): 4.7 Watt
Power Random R/W (Watts): 6.1 Watt
Power Sequential Read (Watts): 6.3 Watt
Power Sequential Write (Watts): 6.3 Watt Dimensions
Width: 4.20 inch
Depth: 6.20 inch
Height: 1.00 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)
- HPE ProLiant XL Series: XL450 Gen10 (3.5 inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
