Product Information

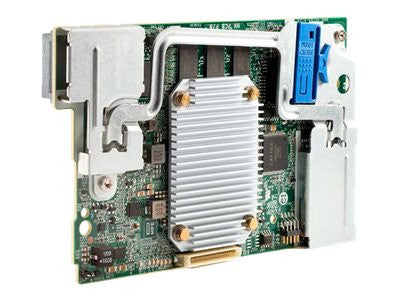

The HPE 836263-001 is a modular Smart Array P204i-b SR Gen10 controller with 1GB of cache and four internal lanes. It has a PCIe 3.0 x8 interface and supports 12Gb/s SAS and 6Gb/s SATA drives.
Key Features
- Supports advanced RAID levels
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 836263-001
Option Part Number: 804367-B21
Spare Part Number: 836263-001
General
Product Type: Storage Controller (RAID) - Plug-in Card
Controller
Host Bus: PCIe 3.0 x8
Features: Flash Backed Write-back Cache (FBWC)
Drive Interface: SATA 6Gb/s / SAS 12Gb/s
Transfer Rate: 12 Gbit/s
Cache Size: 1 GB
Supported Devices: Hard Drive, Disk Array (RAID)
Channels: 4
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 1 ADM
Max LUNs: 64
Connections
Ports: 1 x SATA 6Gb/s / SAS 12Gb/s (internal)
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Power and Environment
Compliance: FIPS 140-2 Level 1
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen10
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
