Product Information

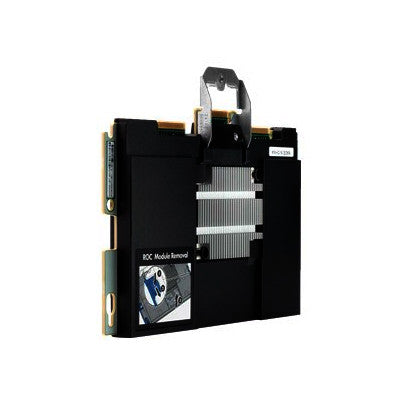

The HPE 836277-002 is a modular Smart Array P408i-c SR Gen10 controller with 2GB of flash backed write cache (FBWC) and eight lanes. It has a PCIe 3.0 x8 interface, supports 12Gb/s SAS and 6Gb/s SATA, and brings 12Gb/s SAS to the HPE Synergy 660 Gen10 Compute Module.
Key Features
- 2GB FBWC lowers latency in write heavy workloads such as databases and protects cached data
- HPE SSD Smart Path creates a faster I/O path to SSDs in read heavy setups
- Optional HPE Smart Array SR Secure Encryption for data at rest, helping meet rules such as HIPAA and Sarbanes-Oxley
- HPE SmartSSD Wear Gauge warns of drive problems before a failure
- Mixed Mode runs RAID and HBA at the same time
- Set up RAID volumes quickly with the UEFI configuration tool, including scripted setup through iLO RESTful
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 836277-002
Option Part Number: 823856-B21
Spare Part Number: 836277-001
Assembly Number: 836277-002
General
Product Type: Storage Controller (RAID) - Plug-in Card
Form Factor: Type-c Modular Controller
Controller
Host Bus: PCI Express 3.0 x8
Cache: 2 GB Flash-Backed Write Cache (FBWC)
Transfer Rate: 12Gb/s SAS per Lane, 6Gb/s SATA per Lane, PCI Express 3.0 x8 Lane Width
Drive Interface: SATA 6Gbps / SAS 12Gbps
Max LUNs: 64
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Additional Features: HPE Smart Array SR Secure Encryption (optional license)
Supported Devices: Hard Drive, Disk Array (RAID)
Connections
Internal Ports: 8 SAS lanes
Ports: SATA 6Gb/s / SAS 12Gb/s (internal)
Software and Compatibility
Supported Servers: HPE Synergy 660 Gen10 Compute Module
Supported Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Compatible Systems
- HPE ProLiant DL Series: DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice
- HPE Synergy 660 Gen10 Base Compute Module, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module, 660 Gen10 Performance Compute Module, 660 Gen10 Premium Compute Module
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
