Product Information

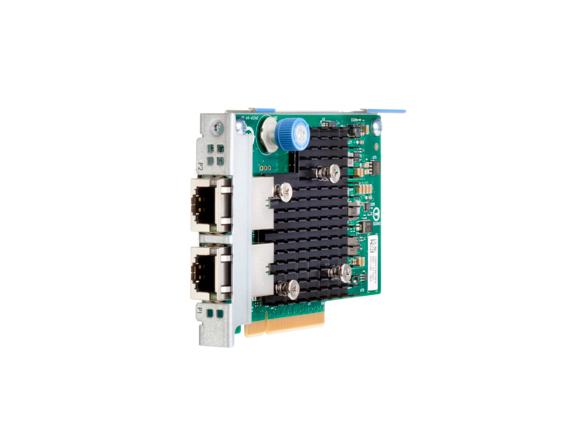

The HPE 840138-001 is the Ethernet 10Gb 2-port 562FLR-T, a 10GBASE-T FlexibleLOM adapter for HPE ProLiant Gen10 and Apollo servers. It runs on PCIe 3.0 x4 and suits virtual server and cloud setups.
Key Features
- Intel X550 controller with full line rate on both ports
- Runs over CAT 6A UTP cable up to 100 meters
- Moves from 1GBASE-T to 10GBASE-T while staying compatible with 1Gb networks
- Handles packet work on the card, which leaves more CPU for applications
- Speeds up small packet traffic for Telco/NFV, HPC and ecommerce by skipping the host OS kernel
- VXLAN and NVGRE tunnel offloads, plus DPDK for faster packet processing
- SR-IOV lifts virtual network performance while lowering CPU load
- Bi-directional bandwidth reaches 40Gbps
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 840138-001
Option Part Number: 817745-B21
Spare Part Number: 840138-001
General
Product Type: Network Adapter - 10Gbit Ethernet
Form Factor: FlexibleLOM
Adapter Details
Bus Type: PCI Express 3.0 x4
Network Processor: Intel X550-AT2
Data Rate: Two ports - each at 20 Gbps bi-directional; 40 Gbps bi-directional theoretical bandwidth
IEEE Standards: 802.3ad, 802.3X, 802.1q, 802.1Qau, 802.1Qaz, 802.1Qbb, 802.1Qbg, IEEE1588, 802.1AS
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Features: Firewall protection, wake on LAN (WOL), IPv6 support, Jumbo Frames support, IPv4 support, PXE support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), secure boot, Network Partitioning (NPAR), HPE Sea of Sensors 3D, IPv6 acceleration, firmware root of trust, audit logs, tunnel offload, generic segmentation offload (GSO)
Processor: 1 x X550-AT2 - Intel
Connections
Connector: RJ-45 (two)
Network Ports: 10Gb Ethernet x 2
Expansion Slots: 1 x FlexibleLOM
Ports: 2 x 10Gb Ethernet - RJ-45
In the Box: Low-Profile Bracket
Size and Weight
Width: 2.25 inch
Height: 7.50 inch
Depth: 9.50 inch
Weight: 1.00 lbs
Certifications and Approvals
RoHS Compliance: 6 of 6
Power and Environment
Power Draw (typical): 10.50 Watt
Power Draw (max): 14.50 Watt
Compliance: WEEE, RoHS, CE, Microsoft WHQL (Windows Hardware Quality Labs)
Operating Temp: 5° to 60° C / 41° to 140° F
Non-Operating Temp: -40°C to 70°C / -40°F to 158°F
Operating Humidity: Minimum to be the higher (more moisture) of -12°C(10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity. (Non-condensing)
Non-Operating Humidity: 5 to 95% relative humidity (non-condensing)
Compatible Systems
- HPE Nimble Storage dHCI Large Solution with
- HPE ProLiant DL380 Gen10, Medium Solution with
- HPE ProLiant DL360 Gen10, Small Solution with
- HPE ProLiant DL360 Gen10
- HPE ProLiant DL Series: DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance
- HPE ProLiant DX Series: DX170r Gen10, DX380 Gen10, DX560 Gen10
- HPE ProLiant XL Series: XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL450 Gen10
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
