Product Information

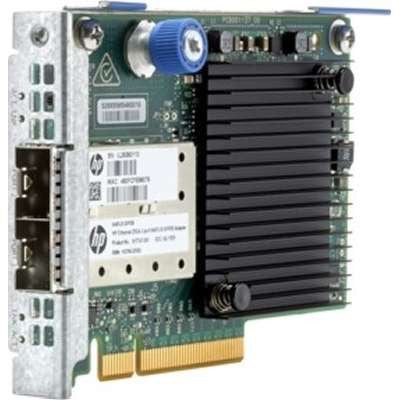

The HPE 840139-001 is the Ethernet 10/25Gb 2-port 640FLR-SFP28, a FlexibleLOM adapter on PCIe 3.0 x8 for select HPE ProLiant Gen9 and Gen10 DL rack servers and Apollo systems. It gives Telco, service providers, financial firms and enterprises the extra bandwidth growing traffic needs.
Key Features
- Mellanox ConnectX-4 Lx controller
- Up to 25Gbps per port
- IPv6, TCP/IP offload, QoS and jumbo frames
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 840139-001
Option Part Number: 817749-B21
Spare Part Number: 840139-001
General
Product Type: Network Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: FlexibleLOM
PCI Spec Revision: PCIe 3.0
Connectivity: Wired
Data Link Protocol: 10 GigE, 25 Gigabit LAN
Transfer Rate: 25 Gbps
Features: VLAN support, IPv6 support, full duplex mode, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, IPv4 support, PXE support, LACP support, LLDP support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, TCP Segmentation Offload (TSO), QoS tagging, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, TCP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2
Bi-directional Throughput: 100 Gbps
Bandwidth per Port: 50 Gbps
Jumbo Frame Size: up to 9.2 KB
Remote Management: SNMP
Status Indicators: Link/activity
Processor: 1 x Mellanox ConnectX-4 Lx - Mellanox Technologies
Connections
Ports: 25 Gigabit Ethernet x 2, 2 x 25Gb Ethernet - SFP28
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware ESXi 5.5, Ubuntu 14.04, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 7.1, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 7.2, VMware ESXi 6.0
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, FCC Class A certified, CISPR 22 Class A, ICES-003, EN55024, WHQL, EN 60950-1, RoHS, ACA, cTUVus, BSMI Class A, VCCI Class A, EN 55022 Class A
Power Draw (operating): 9.7 Watt
Operating Temp (Min): 41 °F
Operating Temp (Max): 140 °F
Operating Humidity: 8 - 90%
Compatible Systems
- HPE Apollo 4200 Gen9, 4520 Gen9, 4530 Gen9
- HPE ProLiant DL Series: DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL360 Gen10 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL360 Gen9 Special Server, DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 High Performance, DL380 Gen10 Performance, DL380 Gen10 Solution, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL385 Gen10, DL385 Gen10 Base, DL385 Gen10 Entry, DL385 Gen10 High-Performance, DL385 Gen10 Performance, DL385 Gen10 Solution, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, DL580 Gen9, DL580 Gen9 Base, DL580 Gen9 Database, DL580 Gen9 High Performance, DL580 Gen9 SAP HANA Scale-up Base Configuration
- HPE ProLiant XL Series: XL170r Gen10, XL230a Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHPE Compute Tray (12G), XL250a Gen9, XL250a Gen9 Accelerator Tray, XL450 Gen10
- HPE SimpliVity 380 Gen10 Node
- HPE StoreEasy 1850, 3850 Gateway Single Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
