Product Information

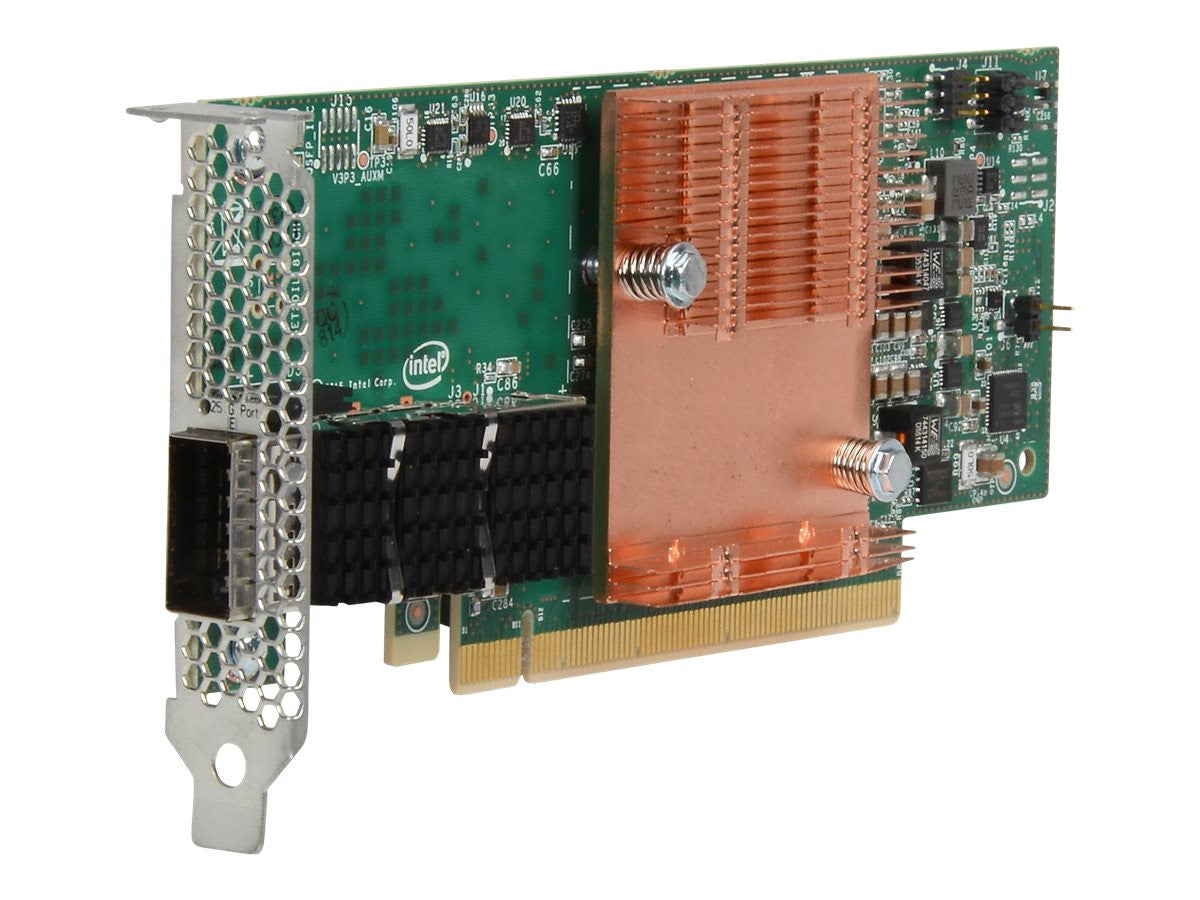

The HPE 841703-001 is a single port 100Gb Intel Omni-Path Architecture adapter with a QSFP28 port, on a low profile PCIe 3.0 x16 card for HPE ProLiant Gen10 servers.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 841703-001
Option Part Number: 829335-B21
Spare Part Number: 841703-001
General
Product Type: Network adapter
Form Factor: Low profile
Adapter Details
Bus Type: PCI Express 3.0 x16
Connectivity: Wired
Data Link Protocol: 100 Gigabit Ethernet
Features: Full duplex mode, Extended Message-Signaled Interrupts (MSI-X)
Connections
Network Ports: 100 Gigabit QSFP28 x 1
Ports: 1 x 100Gb Ethernet - QSFP28
In the Box: Full-height bracket
Software and Compatibility
Supported Operating Systems: CentOS 7.2, Red Hat Enterprise Linux 7.2, SuSE Linux Enterprise Server 12.1, Scientific Linux 7.2
Power and Environment
Compliance: FCC Class A certified, TUV, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CB, FCC Part 15 B, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, REACH, KC, NRTL, VCCI Class A, KN22, NMB-3 Class A, RRA Class A, CAN ICES-3 Class A, CISPR32/EN55032, RoHS 2 (2011/65/EU), KN35
Power Draw (operating): 11.70 Watt
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 85% (non-condensing)
Compatible Systems
- HPE Apollo 4200 Gen10, 4200 Gen10 for
- HPE Ezmeral Container Platform, 4200 Gen9 for Google, pc40, sx40
- HPE Nimble Storage dHCI Large Solution with
- HPE ProLiant DL380 Gen10, Medium Solution with
- HPE ProLiant DL360 Gen10, Small Solution with
- HPE ProLiant DL360 Gen10
- HPE ProLiant DL Series: DL360 Gen10 All Flash Server for Datera, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL360 Gen9 High Performance, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Plus Network Choice, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL385 Gen10, DL385 Gen10 Base, DL385 Gen10 Entry, DL385 Gen10 High-Performance, DL385 Gen10 Performance, DL385 Gen10 SMB, DL385 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10 Base, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, DL580 Gen9 SAP HANA Scale-out Base Configuration, DL580 Gen9 SAP HANA Scale-up Base Configuration
- HPE ProLiant ML Series: ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Sub-Entry
- HPE ProLiant XL Series: XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform, XL290n Gen10 Plus, XL450 Gen10
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
