Product Information

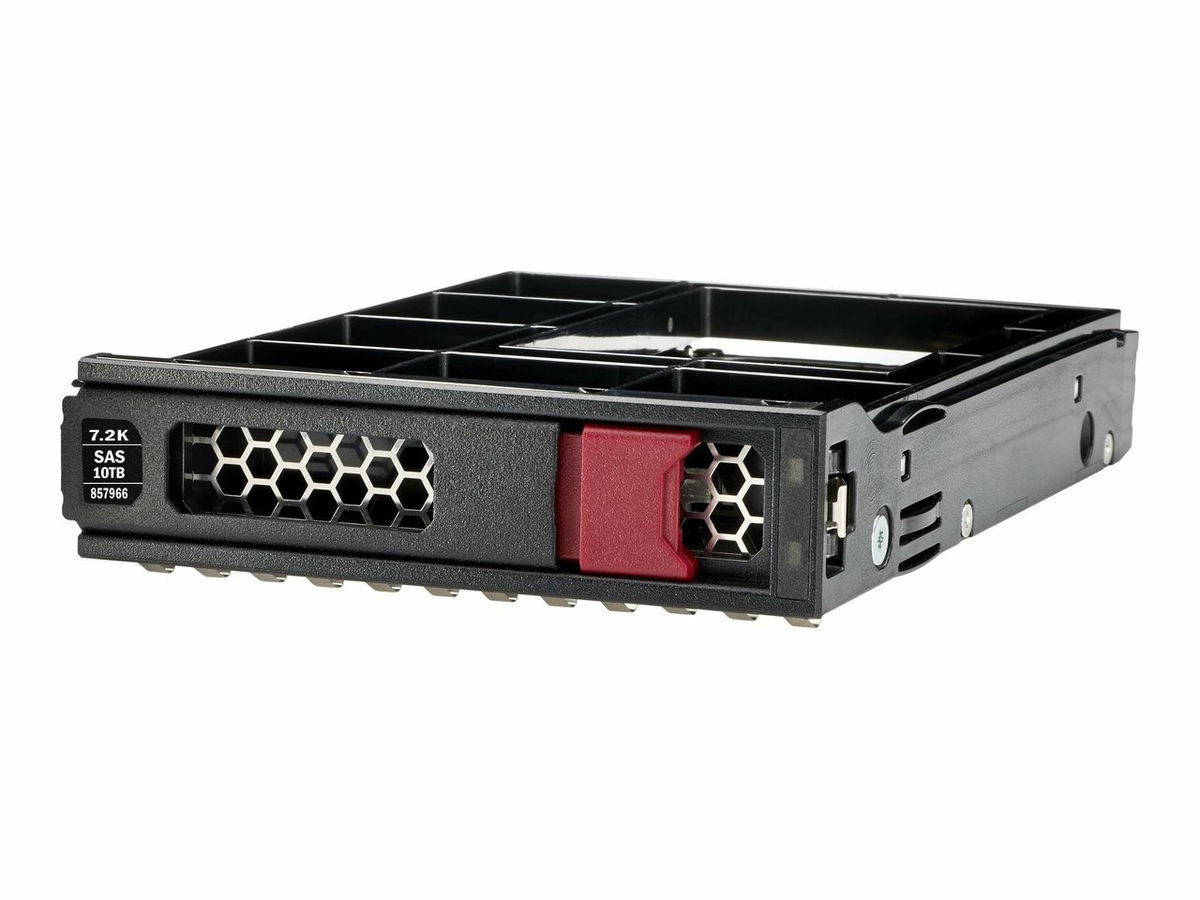

The HPE 857652-002-LP is a 10TB helium filled midline hard drive that spins at 7,200 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface and 512e sector format. The drive comes with HPE digitally signed firmware and a low profile carrier. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 10TB capacity at 7.2K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- 512e sector format
- Helium filled
- Digitally signed firmware
- Low Profile carrier
- Midline class
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 857652-002-LP
Option Part Number: 857646-B21
Spare Part Number: 857966-001
Model Number: MB010000JWAYK
Assembly Number: 857642-002
HPE GPN: 857652-002
General
Device Type: Hard Drive - Hot-Swap
Capacity: 10 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Helium
Plug Type: Hot Pluggable
Format Type: 512e
Carrier Type: Low Profile Carrier (LPC)
Workload Type: Midline
Features: Advanced format 512e, Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Bundled with: HPE Low Profile Carrier
Performance
Rotational Speed: 7200 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
Single Track Seek Time: 0.22 ms
Average Seek Time: 8.00 ms
Full Stroke Seek Time: 16.00 ms
OD Media Rate, Max Sequential Throughput (MiB/s): 235
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 110
128Kib Random 50% RD/ 50% WT (IOPs): 115
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF
Environmental Parameters
Min Operating Temperature: 50 °F (10°C)
Max Operating Temperature: 95 °F (35°C)
Power Consumption
Idle Time: 2.60 Watt
Sequential Read: 4.40 Watt
Sequential Write: 3.90 Watt
Random Read/Write: 3.60 Watt
Product Dimensions & Weight
Height: 1.028 inch (26.10 mm)
Width: 4.15 inch (105.50 mm)
Depth: 6.16 inch (156.58 mm)
Compatible Systems
- HPE Apollo Series: 4200 Gen9 for Google (3.5 inch)
- HPE ProLiant DL Series: DL20 Gen10 (3.5 inch), DL20 Gen10 Entry (3.5 inch), DL20 Gen10 Performance (3.5 inch), DL20 Gen10 solution (3.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Entry (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML30 Gen10 (3.5 inch), ML30 Gen10 Entry (3.5 inch), ML30 Gen10 Performance (3.5 inch), ML30 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 High Performance (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 SMB (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Special Server (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)
- HPE ProLiant XL Series: XL190r Gen9 (3.5 inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
