Product Information

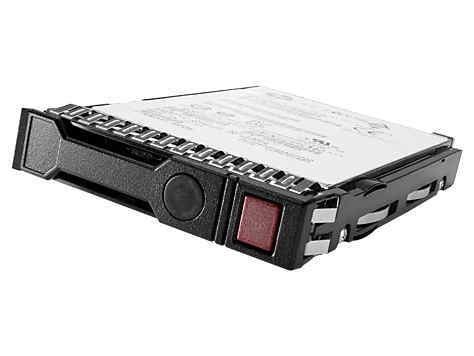

The HPE 861594-K21 is an 8TB, 7,200 RPM midline hard drive. It uses the 3.5 inch large form factor (LFF) with a 6Gb SATA interface and 512e sector format. The drive comes with HPE digitally signed firmware and an HPE Smart Carrier. It is intended for HPE ProLiant Gen8, Gen9 and Gen10 servers.
Key Features
- 8TB capacity at 7.2K RPM
- SATA 6Gb/s interface
- 3.5 inch LFF
- 512e sector format
- Digitally signed firmware
- Smart Carrier
- Midline class
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: 861594-K21
Option Part Number: 861594-K21
Spare Part Number: 861609-001
Model Number: MB008000GWAYL
Assembly Number: 857643-001
HPE GPN: 857653-006
General
Device Type: Hard Drive - Hot-Swap
Capacity: 8 TB
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
Bytes per Sector: 512
Carrier Type: Smart Carrier
Format Type: 512e
Workload Type: Midline
Plug Type: Hot Plug
Features: Native Command Queuing (NCQ), Advanced Format 512e, Digitally Signed Firmware
Bundled with: HPE Smart Carrier
Performance
Drive Transfer Rate: 6 Gb/sec (external)
Average Seek Time: 8 ms
Max Seek Time: 16 ms
Track-to-Track Seek Time: 0.22 ms
Spindle Speed: 7200 RPM
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 3.5" LFF Dimensions
Width: 4.20 inch
Depth: 6.70 inch
Height: 1.10 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant DL Series: DL180 Gen9 (3.5 inch), DL20 Gen9 Solution (3.5 inch), DL360 Gen10 (3.5 inch), DL360 Gen10 Base (3.5 inch), DL360 Gen10 Entry (3.5 inch), DL360 Gen10 High Performance (3.5 inch), DL360 Gen10 Low (3.5 inch), DL360 Gen10 Performance (3.5 inch), DL360 Gen10 Solution (3.5 inch), DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch), DL388 Gen9 (3.5 inch), DL388 Gen9 Base (3.5 inch)
- HPE ProLiant ML Series: ML30 Gen9 Entry (3.5 inch), ML30 Gen9 Solution (3.5 inch)
- HPE StoreEasy 1450
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
