Product Information

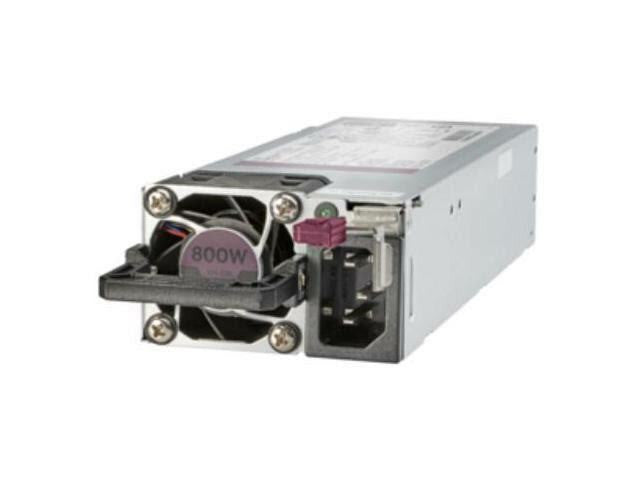

The HPE 865412-201 is an 800 watt Flex Slot hot plug power supply in the low halogen Platinum range, for HPE ProLiant Gen9 and Gen10 servers. It runs on 100 to 240 volt AC at 50/60Hz.
Key Features
- 800W output, 100-240V AC input
- 94% efficiency, 80 PLUS Platinum
- Flex Slot form factor, 25% smaller than HPE Common Slot supplies, leaving more room for other server options
- Tool-less, hot plug design for fast swaps
- The Flex Slot family reaches up to 96% efficiency, which lowers power draw and waste
- One Flex Slot spare covers ProLiant Gen10, ProLiant 300 series Gen9 and Apollo 2000/4000 servers, keeping spares simple
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 865412-201
Option Part Number: 865414-B21
Spare Part Number: 866730-001
Model Number: 865409-001
Assembly Number: 865412-201
General
Product Type: Power Supply - Hot-Plug / Redundant - Plug-in Module
Form Factor Spec: Flex Slot
Size and Weight
Height: 4.00 (10.16 cm)
Width: 7.50 inch (19.05 cm)
Depth: 12.75 inch (32.38 cm)
Weight: 3.00 lbs (1.36 kg)
Power
Input Voltage: 100V - 240V AC
Output Capacity: 800 Watt / 908 VA
Frequency: 50 - 60 Hz
Input Connector: Power IEC 60320 C14
Efficiency: 94%
80 PLUS Rating: 80 PLUS Platinum
Power and Environment
Compliance: UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, low halogen, CISPR Class A
Operating Temp (Min): 41 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Apollo Series: 4200 Gen10 192TB Qumulo Hybrid Node (800 Watt), 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo (800 Watt), 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform (800 Watt), 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform (800 Watt), 4200 Gen10 for
- HPE Ezmeral Container Platform (800 Watt), 4200 Gen10 Qumulo Archive Node (800 Watt), 4200 Gen10 Qumulo Hybrid Node (800 Watt), 4200 Qumulo Hybrid Node (800 Watt)
- HPE Nimble Storage: dHCI Large Solution with
- HPE ProLiant DL380 Gen10 (800 Watt), Medium Solution with
- HPE ProLiant DL325 Gen10 Plus (800 Watt), Medium Solution with
- HPE ProLiant DL360 Gen10 (800 Watt), Small Solution with
- HPE ProLiant DL360 Gen10 (800 Watt)
- HPE ProLiant DL Series: DL180 Gen10 Entry (800 Watt), DL325 Gen10 Plus (800 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (800 Watt), DL325 Gen10 Plus for Weka Expansion Tracking (800 Watt), DL325 Gen10 Solution (800 Watt), DL360 Gen10 All Flash Server for Weka (800 Watt), DL360 Gen10 Compute Server for Cohesity DataPlatform (800 Watt), DL360 Gen10 Performance for Cohesity DataPlatform (800 Watt), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (800 Watt), DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera (800 Watt), DL380 Gen10 for SAP HANA Compute Block (800 Watt), DL380 Gen10 Hybrid Server for Datera (800 Watt), DL380 Gen10 Network Choice for CTERA (800 Watt), DL380 Gen10 Server for CTERA (800 Watt), DL380 Gen10 SMB Networking Choice (800 Watt), DL385 Gen10 Plus (800 Watt), DL385 Gen10 SMB (800 Watt), DL388 Gen10 Network Choice (800 Watt), DL560 Gen10 for SAP HANA Compute Block (800 Watt)
- HPE ProLiant DX Series: DX385 Gen10 Plus (800 Watt), DX560 Gen10 (800 Watt)
- HPE ProLiant ML Series: ML350 Gen10 SMB (800 Watt)
- HPE SimpliVity 380 Gen10 Network Choice G Node (800 Watt), 380 Gen10 Network Choice H Node (800 Watt)
Not sure this power supply fits your system? Send us your server or enclosure model and the DatorPro team will confirm compatibility before you order.
