Product Information

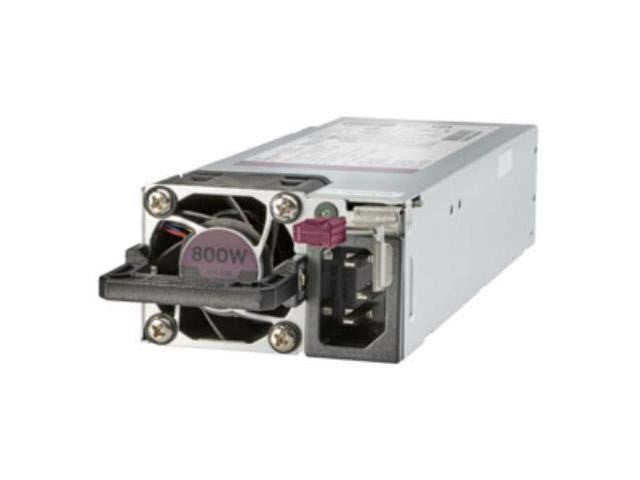

The HPE 865431-001 is an 800 watt Flex Slot hot plug power supply for -48 volt DC power (usable range -40 to -72 VDC), in the low halogen range for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 800W output from -48V DC input
- 94% efficiency
- Flex Slot form factor, 25% smaller than HPE Common Slot supplies, leaving more room for other server options
- Tool-less, hot plug design for fast swaps
- The Flex Slot family reaches up to 96% efficiency, which lowers power draw and waste
- One Flex Slot spare covers ProLiant Gen10, ProLiant 300 series Gen9 and Apollo 2000/4000 servers, keeping spares simple
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 865431-001
Option Part Number: 865434-B21
Spare Part Number: 866728-001
Assembly Number: 865432-401
HPE GPN: 865431-001
General
Product Type: Power supply - hot-plug / redundant - plug-in module
Form Factor Spec: Flex Slot
Size and Weight
Height: 1.60 inch
Width: 2.70 inch
Depth: 8.90 inch
Weight: 32.10 oz
Power
Input Voltage: DC -48 V
Input Voltage Range: DC -40 - -72 V
Frequency: 50 - 60 Hz
Output Capacity: 800 Watt / 883 VA
Efficiency: 94%
80 PLUS Rating: 80 PLUS Platinum
Power and Environment
Compliance: UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, low halogen, CISPR Class A
Operating Temp (Min): 41 °F
Operating Temp (Max): 131 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Apollo Series: 4200 Gen10 (800 Watt), 4510 Gen10, r2600 Gen10 Premium (800 Watt), r2800 Gen10 Flexible (800 Watt)
- HPE Cloudline Series: CL2600 Gen10 (800 Watt), CL2600 Gen10 Network Choice (800 Watt), CL2600 Gen10 Premium (800 Watt), CL2600 Gen10 Premium Network Choice (800 Watt), CL2800 Gen10 (800 Watt), CL2800 Gen10 Network Choice (800 Watt)
- HPE ProLiant DL Series: DL180 Gen10 (800 Watt), DL180 Gen10 Entry (800 Watt), DL180 Gen10 SMB (800 Watt), DL325 Gen10 Base (800 Watt), DL325 Gen10 Plus (800 Watt), DL325 Gen10 Solution (800 Watt), DL360 Gen10 Low (800 Watt), DL360 Gen10 Network Choice (800 Watt), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (800 Watt), DL360 Gen10 SMB (800 Watt), DL360 Gen10 SMB Network Choice (800 Watt), DL360 Gen10 Solution (800 Watt), DL380 Gen10 All Flash Server for Datera (800 Watt), DL380 Gen10 Entry SMB (800 Watt), DL380 Gen10 for Cohesity DataPlatform (800 Watt), DL380 Gen10 Hybrid Server for Datera (800 Watt), DL380 Gen10 Network Choice (800 Watt), DL380 Gen10 Network Choice for CTERA (800 Watt), DL380 Gen10 NVMe All Flash Server for Datera (800 Watt), DL380 Gen10 SMB (800 Watt), DL380 Gen10 SMB Networking Choice (800 Watt), DL380 Gen10 Solution (800 Watt), DL385 Gen10 (800 Watt), DL385 Gen10 Base (800 Watt), DL385 Gen10 Entry (800 Watt), DL385 Gen10 High-Performance (800 Watt), DL385 Gen10 Performance (800 Watt), DL385 Gen10 Plus (800 Watt), DL385 Gen10 Plus Entry (800 Watt), DL385 Gen10 SMB (800 Watt), DL385 Gen10 Solution (800 Watt), DL388 Gen10 Network Choice (800 Watt), DX560 Gen10 (800 Watt)
- HPE ProLiant ML Series: ML350 Gen10 High Performance (800 Watt), ML350 Gen10 SMB (800 Watt), ML350 Gen10 Solution (800 Watt), ML350 Gen10 Special Server (800 Watt), ML350 Gen10 Sub-Entry (800 Watt)
- HPE SimpliVity 325 Gen10 Node (800 Watt), 380 Gen10 G Node (800 Watt), 380 Gen10 Network Choice G Node (800 Watt), 380 Gen10 Network Choice H Node (800 Watt), 380 Gen10 Node (800 Watt)
Not sure this power supply fits your system? Send us your server or enclosure model and the DatorPro team will confirm compatibility before you order.
