Product Information

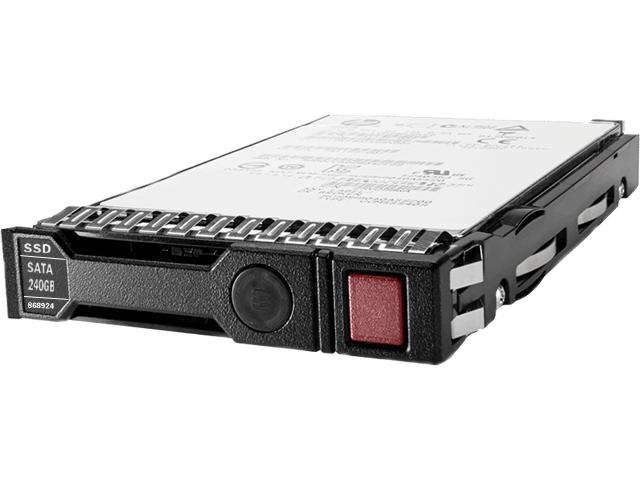

The HPE 866615-001-SC is a 240GB read intensive solid state drive in the 2.5 inch small form factor (SFF) with a 6Gb SATA interface. The drive uses MLC NAND and runs HPE digitally signed firmware. It comes in an HPE Smart Carrier (SC). It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 240GB capacity
- SATA 6Gb/s interface
- 2.5 inch SFF
- Read Intensive workload
- MLC NAND
- Digitally signed firmware
- HPE Smart Carrier (SC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: 866615-001-SC
Option Part Number: 868814-B21
Spare Part Number: 868924-001
Model Number: VK000240GWCFD
Assembly Number: 866615-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 240 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Multi-Level Cell (MLC)
Plug Type: Hot Pluggable
Connectivity Tpye: Single
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Bundled with: HPE Smart Carrier (SC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15 mm (0.6 inch)
Performance
Endurance DWPD (Drive Writes Per Day): 0.8
Drive Transfer Rate: 6 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 370
MAX Seq. Writes Throughput (MiB/s): 300
Random Read Average Latency uSec (4KiB,Q1): 120
Random Write Average Latency uSec (4KiB,Q1): 105
Random Read IOPS (4KiB, Q=16): 66000
Random Write IOPS (4KiB, Q=16): 9800
MAX Random Read IOPS (4KiB): 73000@Q32
MAX Random Write IOPS (4KiB): 9800@Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 21500
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 16000
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 1.24 Watt
Random Read: 2.34 Watt
Random Write: 2.34 Watt
Sequential Read: 2.68 Watt
Sequential Write: 2.71 Watt
Random Read/Write: 2.34 Watt
Miscellaneous
Compliant Standards: WEEE
Product Dimensions & Weight
Height: 18.42 cm
Width: 13.97 cm
Depth: 22.23 cm
Weight: 0.45 kg
Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 60 °C
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)
- HPE ProLiant DL Series: DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
- HPE ProLiant XL Series: XL190r Gen9 (2.5 inch)
- HPE Synergy Series: 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
