Product Information

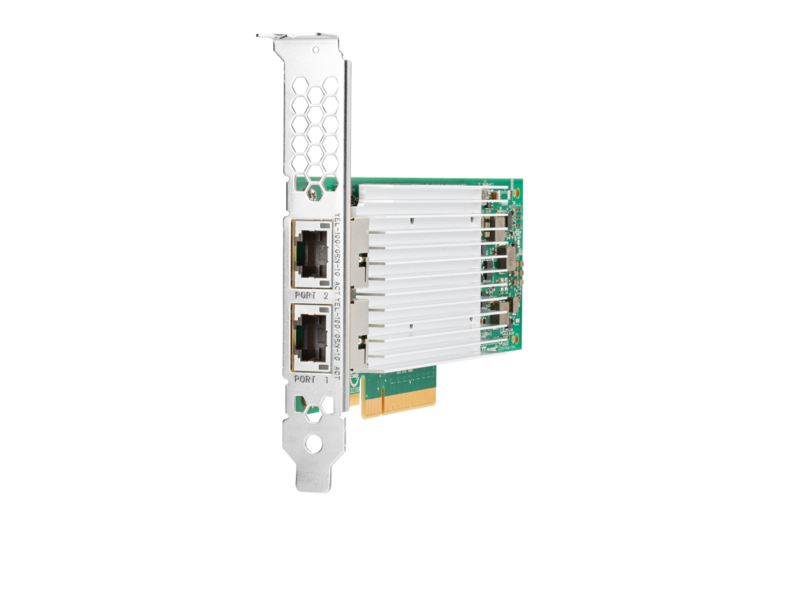

The HPE 867707-B21 is the Ethernet 10Gb 2-port 521T adapter for HPE ProLiant Gen10 servers. It gives a smooth path from 1GBASE-T to 10GBASE-T, runs on CAT 6A cable and stays compatible with existing 1GBASE-T gear, so cables and switches can stay in place.
Key Features
- Packet processing on the adapter lowers CPU load
- Universal RDMA with iWARP, RoCE and RoCEv2 for low latency apps
- VXLAN, NVGRE, GRE and GENEVE tunnel offloads for better VM and network scale
- DPDK speeds up small packet I/O
- Root of Trust design checks digitally signed firmware, helping block, detect and recover from cyberattacks
- Secure Boot, a device level firewall and other built in security tools
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 867707-B21
Option Part Number: 867707-B21
Spare Part Number: 869573-001
General
Product Type: Network Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express 3.0 x8
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Performance: Bidirectional throughput 40 Gbps
Capacity: Jumbo frame size up to 9.2 KB
Remote Management: SNMP
Features: VLAN support, wake on LAN (WOL), IPv6 support, Jumbo Frames support, PXE support, Single Root I/O Virtualization (SR-IOV), Precision Time Protocol (PTP), RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), RDMA over Converged Ethernet (RoCE) v2, Receive Side Coalescing (RSC), HPE Sea of Sensors 3D, Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), iSCSI Extensions over RDMA (iSER)
Connections
Network Ports: 10Gb Ethernet x 2
Ports: 2 x 10Gb Ethernet - RJ-45
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3by, WHQL, RoHS, CE/EMC
Power Draw (operating): 8.4 Watt
Compatible Systems
- HPE ProLiant DL Series: DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 High Performance, DL380 Gen10 Performance, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance
- HPE ProLiant ML Series: ML110 Gen10, ML110 Gen10 Entry, ML110 Gen10 Performance, ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 Performance, ML350 Gen10 Solution, ML350 Gen10 Sub-Entry
- HPE ProLiant XL Series: XL170r Gen10, XL190r Gen10, XL230k Gen10 Compute Tray, XL450 Gen10
- HPE MicroServer Gen10
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
