Product Information

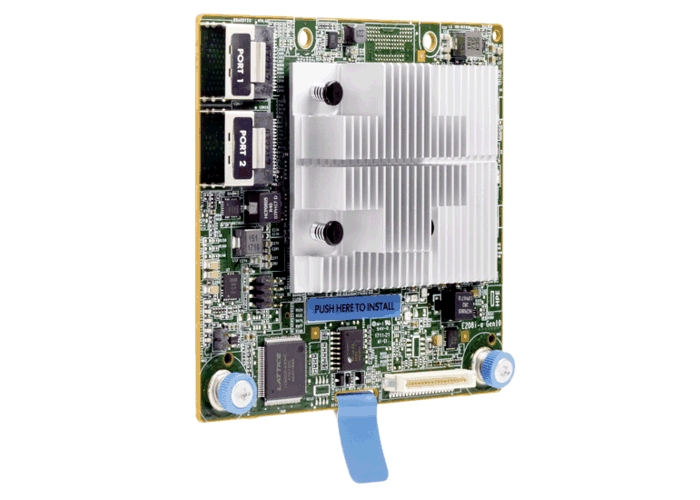

The HPE 869079-B21 is a modular Smart Array E208i-a SR Gen10 controller with eight internal lanes and no cache. It has a PCIe 3.0 x8 interface and supports 12Gb/s SAS and 6Gb/s SATA drives.
Key Features
- Supports advanced RAID levels
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 869079-B21
Option Part Number: 869079-B21
Spare Part Number: 871039-001
General
Product Type: Storage Controller (RAID) - Plug-in Card
Controller
Host Bus: PCIe 3.0 x8
Features: Low Profile Heatsink
Drive Interface: SATA 6Gb/s / SAS 12Gb/s
Transfer Rate: 12 Gbit/s
Supported Devices: Hard Drive, Disk Array (RAID)
Channels: 8
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10
Max LUNs: 64
Connections
Ports: 2 x SATA 6Gb/s / SAS 12Gb/s (internal)
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Compatible Systems
- HPE Apollo Series: 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for
- HPE Ezmeral Container Platform, 4200 Gen10 for
- HPE Ezmeral Tracking
- HPE Nimble Storage dHCI Large Solution with
- HPE ProLiant DL380 Gen10, Medium Solution with
- HPE ProLiant DL360 Gen10, Small Solution with
- HPE ProLiant DL360 Gen10
- HPE ProLiant DL Series: DL160 Gen10, DL160 Gen10 Base, DL160 Gen10 Entry, DL160 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Base, DL325 Gen10 Plus V2 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Plus, DL360 Gen10 Plus Network Choice, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL365 Gen10 Plus, DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice
Not sure this controller fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
