Product Information

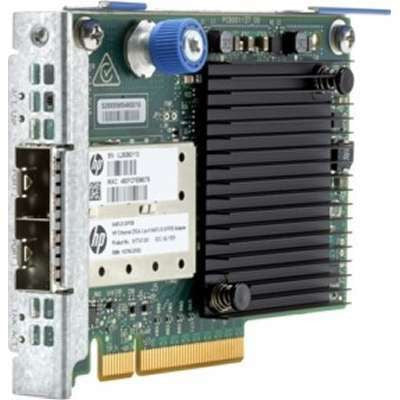

The HPE 869572-001 is the Ethernet 10/25Gb 2-port 622FLR-SFP28, a FlexibleLOM adapter on PCIe 3.0 x8 for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- Up to 25Gbps per port
- IPv6, TCP/IP offload, QoS and jumbo frames
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 869572-001
Option Part Number: 867334-B21
Spare Part Number: 869572-001
General
Product Type: Network Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: FlexibleLOM
PCI Spec Revision: PCIe 3.0
Connectivity: Wired
Data Link Protocol: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Transfer Rate: 25 Gbps
Features: VLAN support, wake on LAN (WOL), IPv6 support, Jumbo Frames support, PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Precision Time Protocol (PTP), RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2, Receive Side Coalescing (RSC), HPE Sea of Sensors 3D, Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), iSCSI Extensions over RDMA (iSER)
Bi-directional Throughput: 100 Gbps
Bandwidth per Port: 50 Gbps
Jumbo Frame Size: up to 9.2 KB
Remote Management: SNMP
Connections
Network Ports: 25 Gigabit Ethernet x 2
Ports: 2 x 25Gb Ethernet - SFP28
Power and Environment
Compliance: IEEE 802.1ad, IEEE 802.1as, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.3by, WHQL, RoHS, CE/EMC
Power Draw (operating): 12.50 Watt
Operating Temp (Min): 41 °F
Operating Temp (Max): 140 °F
Operating Humidity: 5 - 95% (non-condensing)
Compatible Systems
- HPE Nimble Storage dHCI Large Solution with
- HPE ProLiant DL380 Gen10, Medium Solution with
- HPE ProLiant DL360 Gen10, Small Solution with
- HPE ProLiant DL360 Gen10
- HPE ProLiant DL Series: DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance
- HPE ProLiant ML Series: ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Sub-Entry
- HPE ProLiant XL Series: XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL230k Gen10 Compute Tray, XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform, XL450 Gen10
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
