Product Information

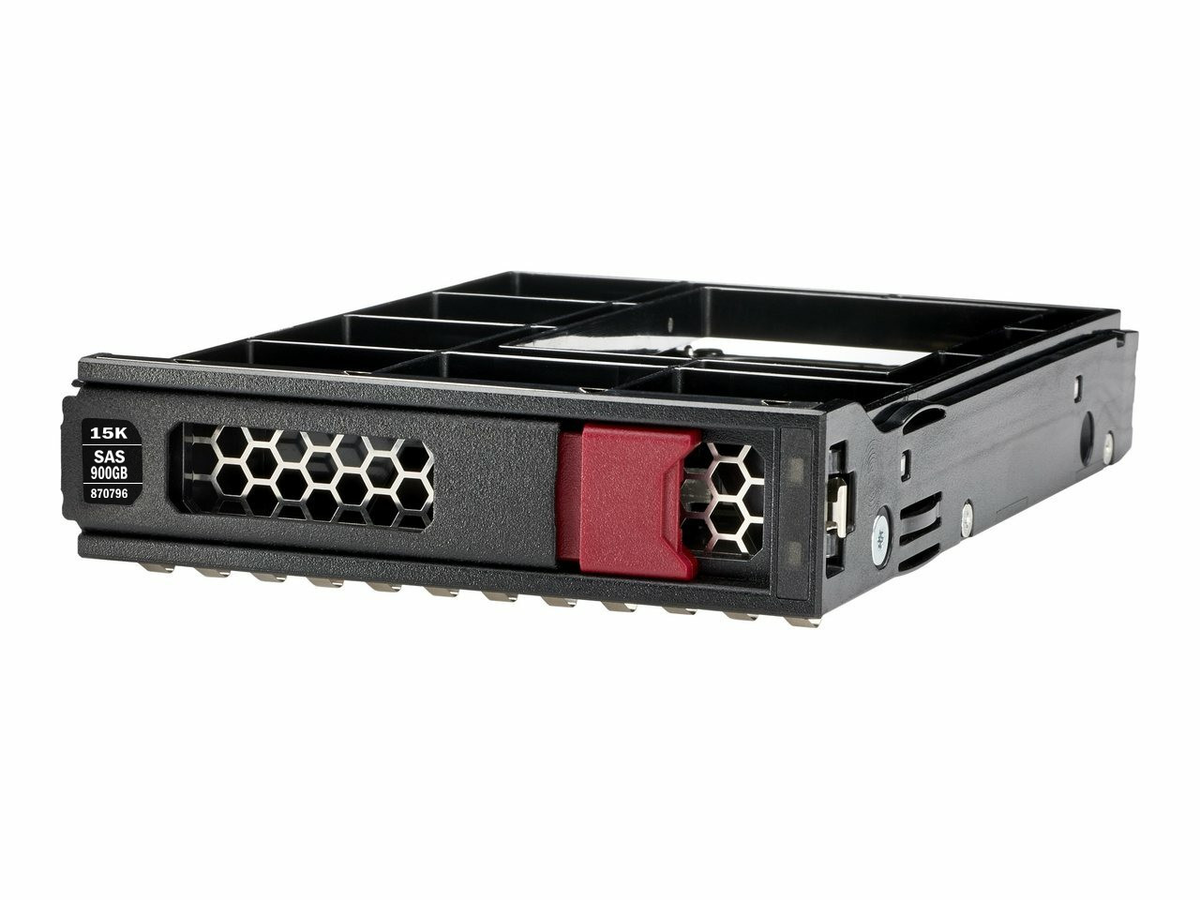

The HPE 870761-B21 gives you 900GB of storage in an enterprise hard drive running at 15,000 RPM. It uses the 3.5 inch large form factor (LFF) with a dual port 12Gb SAS interface and 512n sector format. The drive comes with HPE digitally signed firmware and an HPE Low Profile Converter (LPC). It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 900GB capacity at 15K RPM
- Dual port SAS 12Gb/s interface
- 3.5 inch LFF
- 512n sector format
- Digitally signed firmware
- Low Profile Converter carrier
- Enterprise class
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: 870761-B21
Option Part Number: 870761-B21
Spare Part Number: 870796-001
Model Number: EH000900JWCPN
Assembly Number: 867254-003
HPE GPN: 868774-002
General
Device Type: Hard Drive - Hot-Swap
Capacity: 900 GB
Form Factor: 3.5 inch LFF Low Profile
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Format Type: 512n
Carrier Type: Low Profile Carrier Converter (LPCC)
Workload: Enterprise
Features: Advanced format 512n, Dual Port, Digitally Signed Firmware
Bundled with: HPE Low Profile Carrier Converter
Performance
Drive Transfer Rate (External): 12 Gb/sec
Drive Rotation Speed: 15000 RPM
Average Seek Time: 2.72 ms
Max Seek Time: 5.36 ms
Track-to-Track Seek Time: 0.22 ms
OD Media Rate, Max Sequential Throughput (MiB/s): 295 MiB/s
128Kib Random Rd (IOPs): 235 IOPs
128Kib Random 70% RD / 30% WT (IOPs): 235 IOPs
128Kib Random 50% RD / 50% WT (IOPs): 235 IOPs
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF
Power
Idle Time: 4.70 Watts
Random R/W: 6.10 Watts
Sequential Read: 6.30 Watts
Sequential Write: 6.40 Watts
Dimensions
Width: 4.20 inch
Depth: 6.20 inch
Height: 1.03 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant DL Series: DL325 Gen10 Base (3.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Entry (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML30 Gen10 (3.5 inch), ML30 Gen10 Entry (3.5 inch), ML30 Gen10 Performance (3.5 inch), ML30 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 High Performance (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)
- HPE ProLiant XL Series: XL170r Gen9 (3.5 inch), XL190r Gen9 (3.5 inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
