Product Information

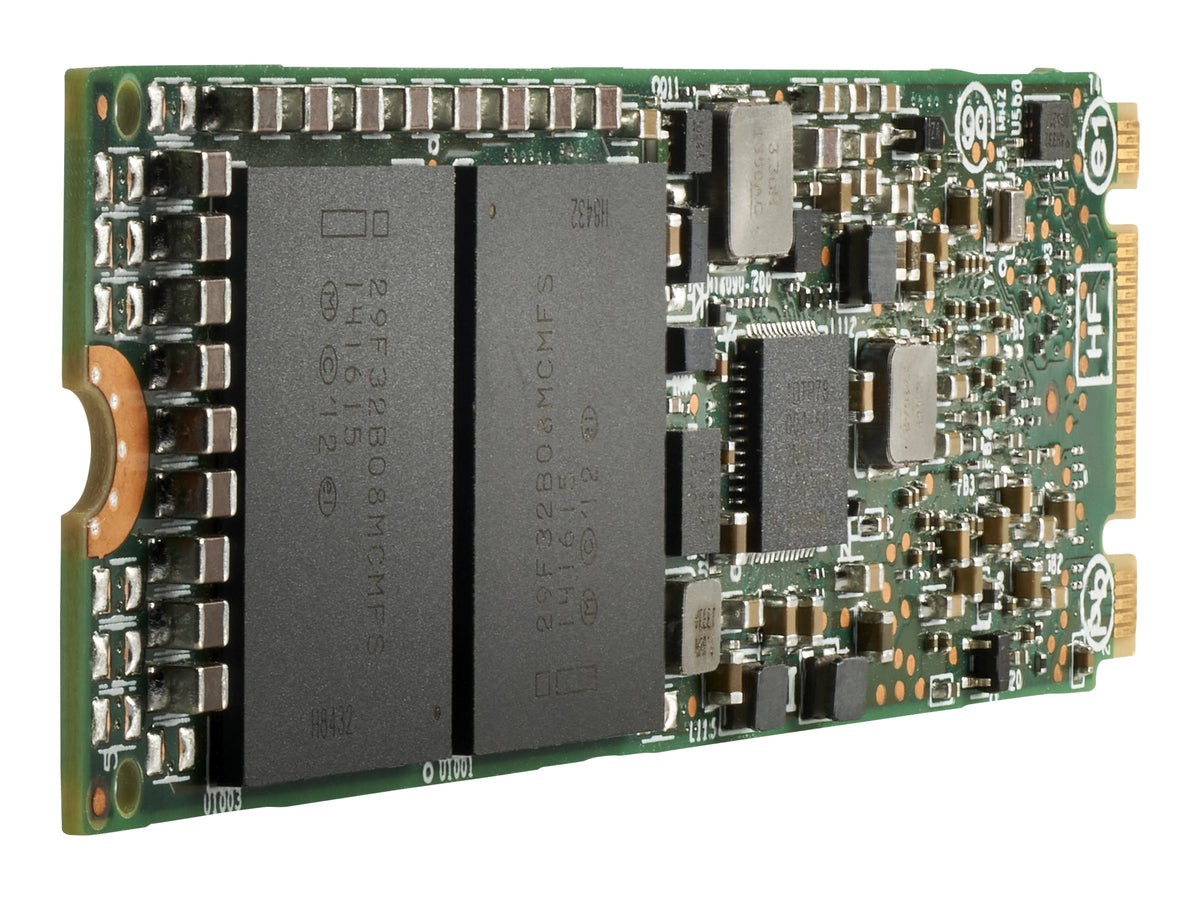

The HPE 871628-002 is a 480GB read intensive solid state drive in the M.2 2280 form factor with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 480GB capacity
- SATA 6Gb/s interface
- M.2 2280 form factor
- Read Intensive workload
- Digitally signed firmware
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: 871628-002
Option Part Number: 875498-B21
Spare Part Number: 875855-001
Model Number: VR000480GWFMD
Assembly Number: 871628-002
General
Device Type: Solid State Drive
Capacity: 480 GB
Form Factor: M.2 2280
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-Level Cell (TLC)
Features: Digitally Signed Firmware
Workload Type: Read Intensive
Platform Supported: HPE Mainstream Compute Platforms
Height: 2280 M.2 Performance 30 Days Writes: 450
Endurance DWPD: 0.50
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 500
MAX Seq. Writes Throughput (MiB/s): 425
Random Read Average Latency uSec (4KiB,Q1): 130
Random Write Average Latency uSec (4KiB,Q1): 40
Random Read IOPS (4KiB, Q=16): 61000
Random Write IOPS (4KiB, Q=16): 46000
Max Random Read IOPS (4KiB): 67000@Q32
Max Random Write IOPS (4KiB): 46000@Q64
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: M.2 2280 Power Consumption Idle Time: 1.07 Watt
Random Read: 3.02 Watt
Random Write: 3.02 Watt
Sequential Read: 3.42 Watt
Sequential Write: 4.03 Watt
Random Read/Write: 3.00 Watt
Power MAX: 5.00 Watt
Compatible Systems
- HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus
- HPE ProLiant BL Series: BL460c Gen10
- HPE ProLiant DL Series: DL180 Gen10 SMB, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9, DL20 Gen9 Base, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Special Server, DL325 Gen10 Base, DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Solution, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Performance, DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform, DL388 Gen9, DL388 Gen9 Base
- HPE ProLiant ML Series: ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance
- HPE Synergy 480 Gen10 Base Compute Module, 480 Gen10 Entry Compute Module, 480 Gen10 Performance Compute Module, 480 Gen10 Premium Backplane Compute Module, 480 Gen10 Standard BackPlane Compute Module, 480 Gen10 w/o Drives Compute Module, 660 Gen10 Base Compute Module, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module, 660 Gen10 Performance Compute Module, 660 Gen10 Premium Compute Module
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
